Panasonic AV-HS400A Compact Live Multi-Format SD/HD-SDI Switcher, 10-Bit HD Processing, Joystick Camera Controls

Panasonic AV-HS400AN: Picture 1 thumbnail Panasonic AV-HS400AN: Picture 2 thumbnail Panasonic AV-HS400AN: Picture 3 thumbnail Panasonic AV-HS400AN: Picture 4 thumbnail

List Price: $11,995.00

17% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic AV-HS400AN

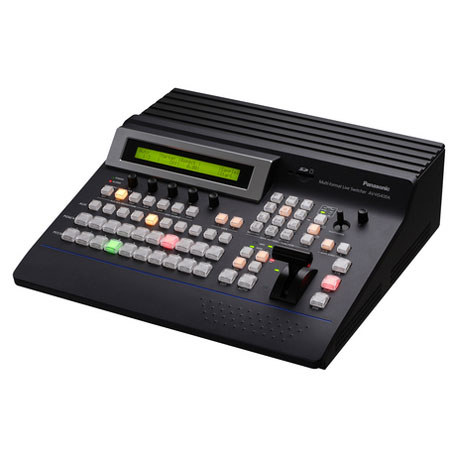

The enhanced Panasonic AV-HS400A offers an array of powerful features including a built-in MultiViewer image preview, full 10-bit HD processing, expandable HD/SD architecture, more than 40 digital effects and picture-in-picture (PIP) capabilities. The HS400A adds a host of new functionality, including enhanced MultiViewer tools such as labeling, border control and preview tally and a joystick camera control for pan/tilt operation of one remote camera via direct serial connection, or up to five remote cameras with a Panasonic camera controller. The HS400A also incorporates additional advanced key effects such as flying key, 3D key effects and a full key for a second moveable PIP. It also offers upgraded graphics functions including file import via Ethernet, alpha channel support and more.

The HS400A's built-in MultiViewer can output 4, 8, or 10 images from different sources to a single high-resolution display, eliminating the need for multiple HD source and preview monitors. New MultiViewer features include custom and menu selection of window labels and enhanced control of labels, borders and label background. For added creativity, the switcher offers a wide selection of wipe patterns including 3D digital effects (such as Page Turn) and features a high-quality chroma key for green screen applications in broadcast and production.

As a compact, All-in-One mixer system, the HS400A easily integrates into existing HD/SD workflows, flawlessly mixing HD and SD video sources using a wide range of optional I/O boards. Its modular architecture comes standard with four HD/SD-SDI inputs and four HD/SDI outputs and can be expanded to support up to 8 inputs and 8 outputs with optional I/O boards. The switcher has a built-in, switchable 10-bit frame synchronizer for each input, for glitch-free switching, even with non-synchronous sources such as Blu-Ray DVD players or remote camera feeds.

New option cards for the HS400A include the AV-HS04M7 dual HD/SD-SDI output card with high-quality down-conversion for simultaneous outputting of high-definition video for HD IMAG and Standard-definition video for webcasting or recording. The AV-HS04M6 dual analog composite input card is ideal for use with legacy equipment.

Panasonic AV-HS400AN Features

  • MultiViewer tools include easier labeling of sources (can use default labels or customize up to 6 characters); label color can be adjusted in shades from full white to black (with removable background bar); adjustable frame border brightness
  • Features a separate green frame outline for preset tally in addition to the red-outlined
  • MultiViewer's large windows can now display either Aux or Key out, not just preview or program
  • Key functions include 3D Key transitions, flying key and full key for second PiP and many other uses
  • Provides joystick camera control of pan/tilt systems (including the AW-HE100)
  • Expanded graphics functions allow users to import graphics of various formats via Ethernet for fast access to titles and pictures
  • Automatic import and sizing of imported TIFF (w/Alpha Channel), PNG (with Alpha Channel), BMP, GIF and JPEG images with HS400 Tool Software (included)
  • Compact design with multi-format compatibility for use in studio or mobile production systems worldwide
  • Multi-viewer function allows users to select and arrange each individual split-screen image
  • Designed with workflow-friendly functions including on-screen display of menus, SD Card slot for transferring still images and user programmable function buttons
  • Forty-three transition effects, including 3D DVE key effects with page turns and rotations, as well as standard wipe, squeeze and slide patterns
  • Enhanced Picture-in-picture (PIP), flying key for eye-catching titling effects, full key for a 2nd effective PiP, luminance key, Aux Bus and downstream key (DSK) functions
  • Modular interface includes Ethernet, RS-422 remote, Tally output and GPI input
  • Rack-mountable and self-contained (ideal for flight-packs and small control rooms)
  • Optional I/O boards include: dual HD/SD-SDI inputs (with SD up-conversion); dual HD/SD component inputs (with up-conversion); dual DVI inputs (up to WXGA 1280 x 768); dual Component outputs for maximum compatibility with legacy systems; a component/DVI output
  • Option boards include the AV-HS04M6 dual analog composite input card; and the AV-HS04M7 dual HD/SD-SDI output card with down-conversion capabilities

Panasonic AV-HS400AN Specifications

Video format
SD (576/50i, 480/59.94i)
HD (1080/59.94i, 1080/50i, 720/59.94p, 720/50p)
Video processing

Y:Cb:Cr, 4:2:2 10 bit
RGB, 4:4:4 8 bit
Standard: Four inputs (HD/SD-SDI)
Option: A maximum of four inputs (Up to 2 input boards (each board offering 2 inputs) for each of the following 4 types of boards may be added: HD/SD-SDI x 2, HD/SD-analog component x 2, analog composite x 2, DVI-I x 2.)
Black burst/TRI (loop through) x 1
Standard: Four outputs (PGM x 2, general-purpose x 2, each HD/SD-SDI ),
Option: A maximum of four outputs (general-purpose x 4), (Up to 2 output boards (each board offering 2 outputs) for the following 3 types of boards may be added: analog component x 2, DVI-I/analog component x 1 each, HD/SD-SDI x 2).
Reference: Loop through x 1 (Genlock)/ Black burst x 2 (internal synchronization)
Pattern: WIPE x 12, Squeeze x 11, SLIDE x 8, 3D DVE x 12 (3 directions)
Selection with key transition is possible independently of background
Transition Method: FADER, AUTO
Transition Type: Cut, mix, wipe (including DVE), background and key can be selected.
Key source: BUS
Key fill: BUS, MATTE
Key mode: Linear key, Lum key, Chroma key (Key only), Full key (Key only)
Transition Method: AUTO (PinP only)
Transition Type: MIX
Serial (EDITOR): D-sub9pin x 1: RS-422 (GVG protocol compatible), for controlling a pan-tilt system
Tally output: D-sub15pin x 1, open collector output
GPI:  3.5 Stereo mini jack
LAN: RJ45, 10 Mbps x 1
Removable media
SD memory card slot: 1 (for transferring still image files and providing an upgrade capability)
10 % to 90 % (no condensation)
Operating Temperature
0 deg.C to +40 deg.C (32 deg.F to 104 deg.F)
Power Supply / Power consumption
AC 100 V to 120 V, 50 Hz/60 Hz / Approx. 98 W
Dimensions (W x H x D)
420 mm x 132 mm x 408 mm / 16-9/16 " x 5-3/16 " x 16-1/16 "
Without options: 6.4 kg (14.1 lbs)
With options: 7.2 kg (15.9 lbs)
