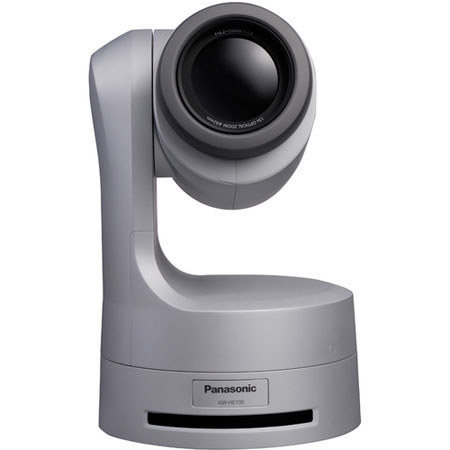

Panasonic AW-HE100N Multi-Format Integrated HD/SD Camera/Pan-Tilt Systems, 1/3" CCD Image Sensor, 13x Optical Zoom Lens, 4.2-55mm Focal Length

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Free Expedited Shipping
Add to Wishlist

About the Panasonic AW-HE100N

The Panasonic AW-HE100N integrated HD/SD camera offers outstanding broadcast-quality video with smooth pan/tilt/zoom operation and easy system configuration. Featuring an elegant ergonomic design, the HE100 has a True Servo pan-tilt head that provides precise, fast and fluid movement, with an exceptional range of 350 degree pan and 250 degree tilt. With three 1/3" CCDs, a fast f1.6 zoom lens, 19-bit video processing DSP (digital signal processor) and 14-bit A/D converter, the camera produces exceptional high definition images in a variety of lighting conditions and environments.

Perfect for applications that require a simple, high definition robotic camera solution, the HE100 is designed to be easily integrated into auditoriums, classrooms, houses of worship and sports venues as well as for use in videoconferencing, broadcast and event production. The standard configuration includes HD/SD analog component and composite video outputs, RS-422 and IR remote control and it is compatible with all of Panasonic's current pan-tilt camera control systems.

Panasonic AW-HE100N Includes

  • Panasonic AW-HE100N Multiformat Pan-Tilt Integrated Camera
  • Wireless Remote Control
  • Power Cable
  • Tabletop/Ceiling Mounting Bracket
  • Main Mounting Bracket
  • Drop-Prevention Wire
  • Cable Cover
  • Mounting Screws
  • Rubber Feet
  • Panasonic 1 Year Warranty

Panasonic AW-HE100N Features

  • Advanced Digital Signal Processor: The camcorder's advanced digital signal processor uses 14-bit A/D conversion and 19-bit inner processing to attain unprecedented accuracy. The DSP performs a variety of adjustments, including eight types of gamma settings, for each of the R, G and B channels
  • Super Smooth Movement: What makes the AW-HE100 so unique is its level of precision during pans and tilts. The smooth feel of the camera makes it ideal for broadcast applications
  • DRS (Dynamic Range Stretch): DRS provides better results in difficult shooting conditions by increasing the camera's perceived latitude and allowing greater detail in shadows and highlights
  • Supports both HD (1080i, 720p) and SD (480i) formats, with simultaneous HD and SD output
  • 13X, f1.6 zoom lens provides wide coverage of scenes
  • Fast, yet smooth and precise pan-tilt performance (maximum 60Deg. per second speed)
  • Direct RS-422 control for fast and accurate pan/tilt/zoom control
  • Simultaneous and switchable HD or SD analog component output, plus SD composite (standard)
  • HD/SD SDI output card is offered as an option
  • Easy integration - simply connect with a regular 15-Pin to BNC breakout cable and a Cat 5 control cable
  • A switchable Smart Flip feature automatically flips the picture (with no glitches) when camera tilts beyond a selected point
  • A wireless IR remote (controls up to 4 cameras) and a ceiling mounting kit are standard accessories

Panasonic AW-HE100N Specifications

Image Elements 1/3-inch interline 3CCD (progressive compatible)
Lens Power 13x zoom F1.6-2.8 (f=4.2 mm to 55 mm, 35 mm equivalent: 32.5 mm to 423 mm)
Focus Auto/Manual switchable
Optical Color Separation Prism system
Gain Selection 0 dB to 12 dB in steps, 15 dB, 18 dB, AGC
Shutter Speed 1/100, 1/250, 1/500, 1/1000, 1/2000, Syncro-scan (60.0 Hz to 248.8 Hz
Gamma Low, mid, high
White Balance AWC A, AWC B, ATW, 3 200 K, 5 600 K
Black Balance Auto
Variable Chromo Levels 7 Levels
Scene Files Halogen light, fluorescent light, daylight, user
Color Bar SMPTE (SD), Full-Bar (HD)
Output Format 1080/59.94i, 720/59.94p, 480/59.94i, 480/29.97psF
Video Output Composite: 1.0 Vp-p/75 Ohms (BNC x 1)
Y/C: Y: 1.0 Vp-p/75 Ohms, C: 0.286 Vp-p/75 Ohms (Burst) (VGA 15P x 1)
Y/Pr/Pb: 1.0 Vp-p/75 Ohms, Pr/Pb: 0.7 Vp-p/75 Ohms (VGA 15P x 1)
Synchronization System Internal/External synchronization, BBS or VBS
Camera/Pan-Tilt head Control Control Cable: 10BASE-T straight cable (UTP category 5), max. 1000 m (control only)
Protocol RS-422 (Panasonic AW series protocol)
Rotation Speed Over 60 Deg./s
Rotation Range Pan: over ± 175Deg., tilt: over +210Deg. to -40Deg.
Noise NC35 (at 60Deg./s in motion), NC30 (at 30 Deg./s in motion)
Stop Accuracy ±3' (0.05 Deg.)
Operating Temperature 0 Deg.C to 40 Deg.C (32 Deg.F to 104 Deg.F)
Storage Temperature -20 Deg.C to 50 Deg.C (4 Deg.F to 122 Deg.F)
Power AC120 V
Power Consumption Approx. 40 W
Dimensions (W x H x D) 8.5 x 13.1 x 10.1" (21.6 x 33.2 x 25.7cm)
Weight 15.4 lbs (7kg)
