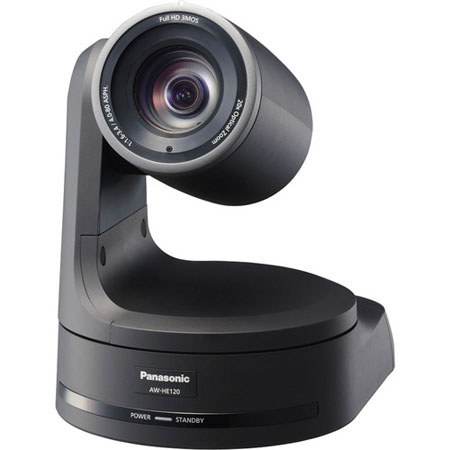

Panasonic AW-HE120 HD/SD Pan/Tilt/Zoom Camera, 2.2 Megapixel U.L.T. MOS Sensor, 20x Zoom, Black

Panasonic AW-HE120: Picture 1 thumbnail Panasonic AW-HE120: Picture 2 thumbnail

Original Price: $8,520.00 Special Price Available

Top Rated Gear
Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic AW-HE120

The Panasonic AW-HE120 HD/SD Pan/Tilt/Zoom Camera (Black) delivers the highest image quality of any integrated pan/tilt/zoom camera. Featuring a fast 20x zoom lens and a three 2.2 megapixel U.L.T. MOS imagers supporting Full HD video capture, the compact HE120 produces excellent video in a wide range of shooting conditions.

Ideally suited for such demanding applications as sports, staging, House of Worship, news and government video, the HE120 is equipped with the same high-performance sensors and digital signal processing used in Panasonic broadcast camcorders such as the AG-HPX370. With a 1000 TV lines of resolution and a 60dB signal-to-noise ratio, the HE120 sets a new performance standard for integrated PTZ cameras, with advanced features as 16-axis color correction and Panasonic's exclusive DRS (Dynamic Range Stretch). HD-SD/SDI, HDMI, Analog Component and SD Composite outputs are all built-in, for out-of-the-box ease of deployment.

The camera's 20x optical zoom lens covers an extended range of shooting situations, from small room wide-angle to back of the house ultra-telephoto, with 35mm equivalents of 32.1 mm at wide-angle to 642.5 mm at telephoto. Remote controlled neutral density filters, DRS, shutter and other functions enable optimal exposure for a wide range of shooting conditions. The camera's fast, quiet integrated pan-tilt head covers a wide range of motion, with a pan range of ±175deg. and a tilt of -30deg. to 210deg.

The AW-HE120 supports both RS-422 serial control and IP control with dedicated RJ-45 connectors. It is compatible with current Panasonic controllers such as the AW-RP655 and AW-HS50 and with many serial and IP control systems from Crestron, AMX and other vendors. The AW-HE120 supports both direct and Web-based IP remote control, so the camera can be securely operated and adjusted remotely from an ordinary browser-equipped PC-anywhere in the world.

Panasonic AW-HE120 Features

  • HD/SD-SDI and HDMI outputs are standard as well as analog component and SD composite
  • Supports international HD and SD video signal formats including: 1080/59.94p (HDMI only), 1080/59.94i, 720/59.94p, 480/59.94p (HDMI only), 480/59.94i, 1080/50p (HDMI only), 1080/50i, 720/50p, 575/50p (HDMI only) and 576/50i
  • Weighs just 6.6lbs and consumes just 21 Watts at 12V DC (power supply included)
  • Built-in remote-controllable, four-position ND filter (clear, 1/4, 1/16, 1/64) facilitates flexible exposure control in brightly lit shooting situations
  • Newly-developed pan-tilt mechanism combines a high level of responsiveness with static precision. A low NC (Noise Criteria) level of 35 is maintained for shooting in noise sensitive environments such as jazz clubs and boardrooms
  • Up to 100 preset positions and camera settings are stored in the camera, perfect for the most demanding large venue installation
  • A twist-lock ceiling mount is included as a standard accessory and the HE120 also equipped with a 1/4-20 tripod mounting screw receptacle and a safety lanyard for use with many tripod mounting and grip systems

Panasonic AW-HE120 Specifications

Image Sensors
1/3 progressive 2.2 megapixel, 3MOS sensor
Motorized 20 x zoom, F1.6 to F3.4 (f=4.5 mm to 90 mm, 35 mm equivalent: 32.13 mm to 6452.5 mm)
Focus Distance
Entire zooming range: 800 mm, Wide end: 400 mm
Output Format
1080/59.94p, 1080/59.94i, 720/59.94p, 480/59.94p, 480/59.94i, 1080/50p, 1080/50i, 720/50p, 576/50p, 576/50i
Synchronization System
Internal/External synchronization (BBS/3SY)
Installation Method
Stand-alone (Desktop) or suspended (Hanging)
Pan/Tilt Operation Speed
Max 60deg./sec.
Pan Range
Tilting Range
-30deg. to 210deg.
Preset Positions
Power Requirements
DC 12 V ±10 % (AC adaptor provided)
Power Consumption
1.75 A
Dimensions (W x H x D)
180 x 228 x 220 mm (7.1 x 9.0 x 8.7 inch) (excluding protrusions, cable cover, direct ceiling mount brackets)
3.0 kg (6.6 lbs) (including the mount brackets)

Panasonic AW-HE120 Reviews

Reviewed by 1 customers

(1 of 1 customers found this review helpful)


Church Installation


from Durham, NC  -  Power User

Camera performed as expected. Complex options allow one to tailor the image to taste, but will require past knowledge or a commitment to study the manual. The reach of the zoom is awesome as is the image quality. Currntly being used in an interim stage of S-video. Will transition to HD when we install new switcher. First use of SDI so needed a converter (blackmagic) to get to and analog signal. PTZ fuctions are quiet and precise.
