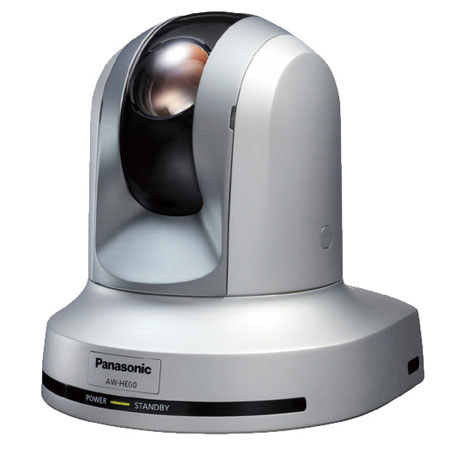

Panasonic AW-HE60SN HD/SD PTZ Camera with HD/SD-SDI Output, IP Image Monitoring


List Price: $5,700.00

24% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic AW-HE60SN

The Panasonic AW-HE60SN is a full HD integrated pan/tilt/zoom camera with HD/SD-SDI output and live IP image monitoring for remote preview and control, plus a Night Mode for shooting in extremely low light with IR illumination. Offering a sleek light weight compact design and turn-lock mounting, the HE60S combines outstanding image quality, smooth pan/tilt/zoom operation, genlock and easy integration for superior HD and SD production and video communications. The HE60S utilize a 1/3" full HD MOS sensor 1920 x1080, along with advanced features such as Dynamic Range Stretch (DRS) technology and Hybrid 2D/3D Noise Reduction processing. It produces smooth, sharp HD video with up to 850 lines of horizontal resolution in a wide range of lighting conditions and environments.

The AW-HE60SN camera provides remote IP control and live IP image monitoring that offer many advantages - such as reduced integration costs, easy remote production and engineering and lower cost for multiple location systems, making it ideal for sports, education, house of worship and government applications. IP monitoring is displayed in at up to 30fps in VGA (640 x 480) and QVGA (320 x 240). Multi-view monitoring, of up to 16 cameras on a single display, is available in M-JPEG only. Furthering the versatility of this function, remote IP monitoring is available on mobile devices such as iPhone, iPad, Android, as well as conventional displays.

The AW-HE60SN camera incorporates a highly-accurate pan-tilt head that offers precise, fast, fluid movement in all directions, enabling the capture of both slow and fast-moving objects without excessive vibration and bounce. With an 18X HD optical zoom plus 10X digital zoom, the HE60S is suitable for shooting in both large and small venues. In addition, the Night Mode feature permits shooting in ultra low illumination with the use of an optional IR illuminator. This makes it ideal for use in reality show production, sleep labs and other specialized applications. The cameras switchable IR cut filter allows for switching between daytime view and high-resolution, black-and-white nighttime/IR video.

Panasonic AW-HE60SN Features

  • 1/3 type Full HD MOS sensor
  • 18x optical zoom (10x digital zoom)
  • Versatile terminals: analog component (D-sub 15-pin) output, composite output and HDMI connector
  • Formats supported: 1080/59.94i, 29.97PsF, 50i, 25PsF; 720/59.94p, 50p; 576/50i; 480/59.94i
  • Dynamic Range Stretch (DRS) for minimizing saturation in highlight and block in dark area
  • Featuring hybrid digital noise reduction (Hybrid DNR) that allows clear shooting with minimal afterimages even in dimly lit situations
  • Equipped with Night mode for nighttime shooting
  • Designed with a form that matches surrounding spaces and a cable cover that prevents clutter
  • Turn-lock mounting mechanism enables easy, single-person installation

Panasonic AW-HE60SN Specifications

Image sensors
1/3 type Full-D MOS
Motorized 18x zoom, F1.6 to F2.8 (f = 4.7 mm to 84.6 mm, 35 mm equivalent, 36.9 mm to 664.5 mm)
Focus Distance
Entire zooming range: 3.3 ft. (1 m), wide end: 0.98 ft. (30 cm)
Output Format
1080/59.94i, 29.97PsF, 50i, 25PsF
720/59.94p, 50p
Synchronization System
Internal/External synchronization (BBS)
Installation Method
Stand-alone (Desktop) or suspended (Hanging)
Pan/Tilt Operation Speed
Max 90deg./s
Pan Range
± 175deg.
Tilt Range
90deg. to -30deg.
NC35 (at normal speed), NC40 (when preset)
Preset Positions
Input/Output Connector
RJ-45 (IP) /RD422A (MULTI-IF)
Image compression method
Image resolution
VGA (640 x 480) (16:9 Letterbox: 640 x 320)QVGA (320 x 240) (16x9 Letterbox: 320 x 180)
Image Distribution Setting (JPEG)
Frame rate: max. 30 fps
Image quality settings: 10 steps
Distribution method: Unicast only
Applicable protocol: HTTP (CGI)
Image Distribution Setting (H.264)
Frame rate: max. 30 fps
Bit rate: 64 kbps - 4096 kbps
Image quality settings: 3 steps
Distribution method: Unicast only
Applicable protocol: HTTP (CGI), RTSP, RTP(+RTCP)
Power Requirements:
DC 12 V (AC adaptor supplied)
Power Consumption:
1.4 A
Dimensions (WxHxD)
6.29x7x6.53" /160x178x166mm
Excludes protrusions, cable cover and direct ceiling mount bracket
Approx. 3.1 lbs (1.4 kg) without mount bracket
