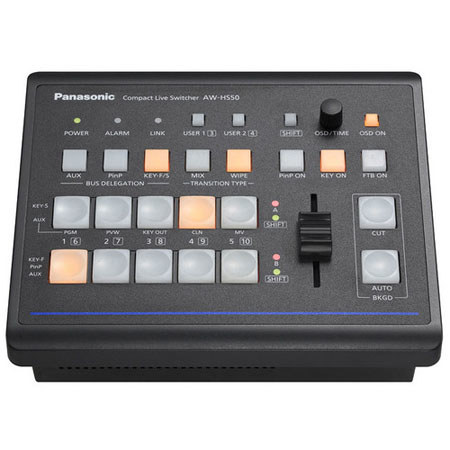

| Video format |
HD (1080/59.94i, 1080/50i, 1080/23.98PsF,1080/24PsF, 720/59.94p, 720/50p)
SD (480/59.94i, 576/50i) |
| Video Processing |
Y: Cb:Cr, 4:2:2 10 bit (8 bit for FMEM)
RGB, 4:4:4 8 bit |
| M/E |
1 M/E |
| Video Input |
Standard: 4 SDI inputs (SDI-IN1 to 4)
Standard: 1 DVI-D input (DVI-IN)
XGA (1024 x 768), WXGA (1280 x 768)
SXGA (1280 x 1024), WSXGA+ (1680 x 1050)
UXGA (1600 x 1200), WUXGA (1920 x 1200)
Vertical frequency: 60 Hz
1080/50p, 1080/59.94p |
| Video Output |
Standard: 2 SDI outputs
(SDI-OUT1 to 2 each, 2 output distribution for SDI-OUT1)
Standard: 1 DVI-D output (DVI-OUT)
XGA (1024 x 768), WXGA (1280 x 768),
SXGA (1280 x 1024), WSXGA+ (1680 x 1050),
UXGA (1600 x 1200), WUXGA (1920 x 1200)
Vertical frequency: 60 Hz
1080/50p, 1080/59.94p |
| Interface |
LAN: 10BASE-T/100BASE-TX (for IP control); RJ45 x 1
TALLY/GPI
GPI INPUT x 5 channels; D-sub 15 pin
GPI OUTPUT x 7 channels; (female) x 1 |
| Power Supply / Power consumption |
DC12 V ±10 % (AC adapter provided), 2.0 A |
| Operating Temperature |
0 Deg.C to 40 Deg.C (32 Deg.F to 104 Deg.F) |
| Operating Humidity |
10 % to 90 % (no condensation) |
| BKGD |
Wipe Pattern: Wipe x 13
Transition Type: Cut, Mix, Wipe (including DVE) |
| FTB |
Selectable Materials: Black, White, CBGD, FMEM1, FMEM2 |
| Keyer |
Number of Keys: 1
Key Type: Linear key, Luminance key, Chroma key
Transition Type: Mix |
| PinP |
Number of PinP: 1
Transition Type: Mix
BUS Transition Yes (Mix) |
| AUX Bus |
Number of AUX BUS: 1
Selectable Materials: SDI-IN1 to 4, DVI-IN, CBAR, CBGD, BLACK, FMEM1, FMEM2, PGM, PVW, KOUT, CLN, MV
BUS Transition: Yes (Mix) |
| Input function |
Frame Synchronizer: SDI-IN1 to 4, DVI-IN (DVI-IN is always-on)
Freeze: SDI-IN1 to 4, DVI-IN
Dot by Dot: SDI-IN1 to 4
Video Processing: SDI-IN1 to 4
Up-converter: SDI-IN3, IN4 |
| Output function |
MultiViewer: Single Screen Display
Labels, Tally indication, Split-screen (the screen may be split into 4, 5a/5b, 6a/6b, 9 and 10a/10b sections) MV frames, Labels, Tally indications, camera setting information and Audio Level Meters are not shown on SDI-OUT1
OSD: Single Screen Display, SDI-OUT2,DVI-OUT (unshown on SDI-OUT1)
Audio Level Meter: SDI embedded audio (group1/ 1 ch, 2 ch) |
| Frame Memory |
2 channels
The image data in the Frame Memory is stored even when the power is off
Video processing for the Frame Memory is 8-bit
OSD, Frames, Labels, Tally indications, camera setting information and Audio Level Meters for MultiViewer are not stored in the Frame Memory |
| Memory Function |
PinP Preset
Effect Dissolve Function |
| Dimensions (W x H x D) |
210 mm x 67 mm x 177 mm (8-1/4 " x 2-5/8 " x 6-15/16 " ) (excluding protrusions) |
| Weight |
Approx. 1.4 kg (3.1 lb) |
