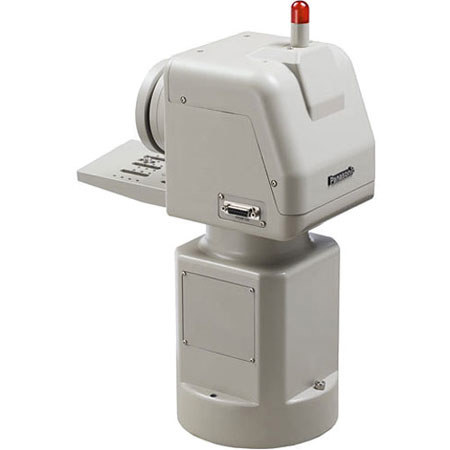

Panasonic AW-PH405: Picture 1 regular $8,500.00

About Panasonic AW-PH405

The Panasonic AW-PH405 is a heavy-duty, pan/tilt head system designed for professional studio and indoor use. A durable solution for applications such as a teleprompter, the AW-PH405 can support camera, lens and studio teleprompter configurations of up to 33 pounds.

It is also capable of supporting larger lens solutions for indoor robotics uses ranging from sports, churches and auditoriums to large venue image magnification (IMAG) in arenas, events and more. The system is compatible with AK-HC1500G compact HD multi-purpose camera and current line of standard definition convertible cameras.

Panasonic AW-PH405 Features

  • Ideal for professional studio use
  • Supports up to 17" LCD Tele-prompter
  • Supports long throw lenses for indoor robotics applications: Sports, Large Venue IMAG, Auditorium, Arenas, Staging & Events
  • Dual RJ-45 jacks: RCU and full CCU control
  • Component, Composite, SDI output, Genlock
  • Supports AW series convertible cameras and AK-HC1500G HDTV box camera
  • Soft Landing feature
  • Quiet Motion under NC35
  • Supports all Panasonic controllers: AW-RP555, AW-RP655, AW-RP400
  • Control distance up to 1500 meters (with AW-IF400), 1000 meter control AW-RP655/RP555
  • Removable Tally light with 6" light riser option
  • Built-in 120v power supply
  • Lens Interface: ENG (RD), Motor Drive (MD)

Panasonic AW-PH405 Specifications

Power Supply
AC120 V/ AC 220 V to 240 V
Pan Range
300 degree
Tilt Range
300 degree
Pan & Tilt Speed
15deg./Sec with Teleprompter
Power Consumption
120 W
Maximum Cable Length
Up to 1500 meters Depending on Remote Control Device
Maximum Load Capacity
15 kg / 33.06 lbs
Dimensions (W x H x D)
319 x 416 x 168mm / 12.55 x 16.37 x 6.61"
10.0 kg / 22.0 lbs
