Panasonic BT-3DL2550 25.5" 3D LCD Video Monitor, 1920x1200 Resolution, Wide Color Gamut, 10-bit Image Processing, Pinjack x 2 (Stereo)


List Price: $7,210.00

Free Shipping

See all shipping options

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2-3 Weeks from date of order. learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic BT-3DL2550

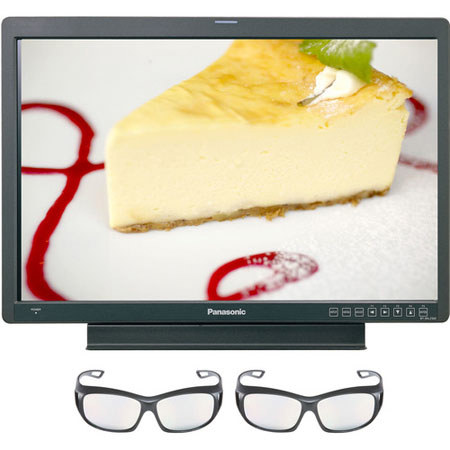

The Panasonic BT-3DL2550 25.5" 3D LCD Video Monitor is a rugged, high-end production monitor offering a 1920 x 1200 display and the ability to monitor high-definition 3D video both in the studio or in the field. Its assortment of professional inputs - dual HD/SD-SDI, DVI, component, RGB - timecode display and 8-channel audio metering provide the flexibility necessary for monitoring 3D footage directly from a Panasonic 3D camera, high-end NLE system, or any other professional interface. The included polarizing glasses let you view the footage in full 3D, using one of 3 types of input: simultaneous Left and Right signals (separated across two monitors), line-by-line alternating Left and Right signals, or side-by-side images on a single display.

Other useful features include five customizable function keys, pre-installed calibration software, Cine-gamma Film-Rec compensation, Standard Markers and Blue-only, H/V delay display, monochrome and Cross Hatch overlay display and split-screen/freeze frame - all contained within a lightweight, ruggedized frame with an aluminum alloy back panel designed with VESA-mount compatibility.

Panasonic BT-3DL2550 Features

  • A Wide Color Space with Six Color Space Modes: The color space of the BT-3DL2550 is 102% that of the NTSC standard, so it exceeds the EBU/SMPTE range that can be displayed by ordinary LCDs
  • 3 Color Space Modes: The BT-3DL2550 also offers three new color space modes in addition to the three conventional modes. The modes are menu switched and can be assigned to function switches on the front panel for quick and easy changing
  • Space-Saving 25.5" Full HD Monitor: The BT-3DL2550 is a full HD WUXGA (1920 x 1200) high-resolution IPS monitor. It is 10% narrower, 7% shorter and has a 16% smaller footprint than the previous BT-LH2600W model with the same screen size
  • Faithful Color Reproduction for Broadcasting Services: High-accuracy 10-bit image-processing of each of R, G and B color data using 3D-LUT (Look-up Table) enables accurate color reproduction in all video formats whose luminance is low to high
  • "Xpol" Polarizing Filter Has Been Adopted: The Xpol Stereoscopic 3D is an optical device based on a regularly arranged micro-polarizer. This allows 3D video to be viewed with polarizer glasses by bonding it to a flat-panel display, such as an LCD
  • Supports 3 Types of 3D Video Input System: Interfaces required by professionals for 3D video production are available as standard. Monitor supports inputs of full HD 3D video from integrated twin-lens 3D camera recorders and other existing 3D cameras
  • Provides Special Functions Needed for Adjusting Rig-type 3D Cameras: General rig-type 3D camera systems require the optical axis displacement to be compensated before filming. The BT-3DL2550 has various special display functions (overlay or half-mirror display and variable H-phase function)
  • Calibration function
  • Two inputs/two screens
  • I/P conversion circuit that reduces delay to less than one field, jaggy compensation and high-picture-quality processing including high-speed motion picture response
  • A variety of markers, crosshatching or blue-only display
  • Time code display when HD SDI signals input
  • Two SDI (HD/SD), component and DVI-D inputs, RGB input compatible
  • RS-232C and GPI remote control
  • Tally lamp (red and green)
  • Headphone jack
  • Quiet operation without fan noise
  • Wall mountable (with optional BT-WMA26G)

Panasonic BT-3DL2550 Specifications

Signal System
Monitor Type
Screen Size
1920 x 1200
Aspect Ratio
Display Colors
16.77 million
Viewing Angle
Video: BNC x2 (with through-out connector x1)
YPBPR/RGB: BNC x6 (with through-out connector x3)
SYNC/HD: BNC x2 (with through-out connector x1)
VD: BNC x2 (with through-out connector x1)
SDI: Dual SDI, BNC x4 (Active Through connector x2)
DVI-D (HDCP, TMDS Single Link): DVI-D x1
Audio Input: Pinjack x2 (Stereo)
Headphone Output: M3 stereo mini jack x1
GPI: D-SUB, 9-pin
RS-232C: D-SUB, 9-pin
External DC Power Input: XLR, 4-pin (Supplied AC adapter only)
Power Requirements
100-240VAC, 50/60Hz 24VDC, 5VDC
Power Consumption
1.6-0.6A (100-240VAC)
4.5A (24VDC)
0.03A (5VDC)
Dimensions (W x H x D)
With Stand: 23.6 x 17.3 x 8.7" (60 x 44 x 22 cm) With out Stand: 23.6 x 16.1 x 3.9" (60 x 41 x 10 cm)
With Stand: 23.1 lbs (10.5kg) With out Stand: 19.8 lbs (9kg)
