Panasonic KV-S1046C Document Scanner, 45 ppm (Mono)/45 ppm (Color), USB, 75 Sheets ADF Capacity, 600x600 dpi

Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify when in stock

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $54.95
  • New Leaf 3 Year Drops & Spills Protection + $79.95
  • New Leaf 5 Year Drops & Spills Protection + $129.95

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

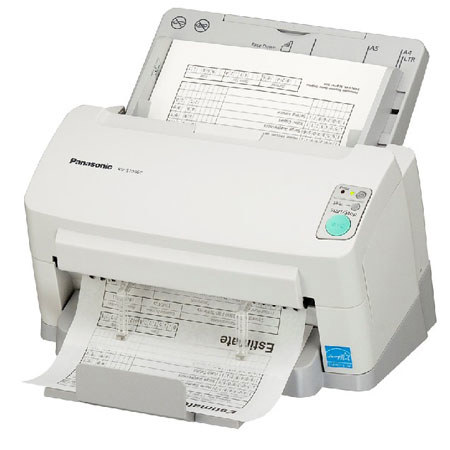

Panasonic KV-S1046C: Picture 1 regular $824.99

About Panasonic KV-S1046C

Designed for the modern digital office, the Panasonic KV-S1046C document scanner is an essential tool for all your document capture needs. This robust and highly reliable workgroup scanner packs plenty of punch and is the perfect solution for any document capture application.

Boasting a compact footprint, only slightly larger than a sheet of letter size paper, the Panasonic KV-S1046C scanner can hold up to 75 originals with a scan speed up to 45 pages per minute or 90 impressions per minute when duplex scanning is enabled. The Panasonic KV-S1046C is also capable of scanning up to 3 hard plastic cards in a single scan and can handle a variety of paper weights, types and lengths as well as multipart forms.

Included with every Panasonic KV-S1046C scanner is a copy of Panasonic's very own Image Capture Plus software. This simple, yet powerful capture software offers an intuitive user interface which features a thumbnail view of scanned documents and a wide variety of image processing capabilities.

Panasonic KV-S1046C Features

  • High Speed Full Color Scanning: This scanner can quickly convert a large number of documents into electronic data, so it provides smooth usage even in offices with many users. Scanning documents into data makes it possible to consolidate information, which improves work efficiency
  • Duplex Scanning: Double-sided scanning of documents from business-card size all the way to A4 can be done with a single scan. Plus, double-sided scanning is done at the same speed as single-sided scanning. This eliminates the need to repeatedly turn the document over to the front and back to rescan
  • Double Feed Prevention Roller System: The active double-feed prevention roller reverses rotation the instant that the leading document leaves the paper feed section to prevent the double-feeding of documents that are stuck together
  • Compound Paper Scanning: A double-feed prevention roller release mechanism is provided. By lifting the manual feed selector, compound paper such as carbonless copy paper can also be fed.
  • Ultrasonic Double Feed Detection: In addition to its double-feed prevention roller, the double-feed prevention system is enhanced by an ultrasonic sensor that detects the double feeding of originals during scanning. This innovative design prevents double feeding
  • Double Feed Skip Function: When scanning stops due to documents that include things like envelopes or that have sticky notes attached, simply press the Skip key to cancel the error and resume scanning
  • Dog-Ear Detection: When a scanned image is missing due to an inadvertently folded corner (dog-ear) or a document that is extremely skewed, the Dog-Ear Detection function automatically and temporarily stops the scanning. The user can then decide to rescan, or to continue scanning as is
  • Document Output Control: The output speed is automatically lowered for documents that are 148 mm (5.82 inches) or shorter and the exit guides keep the document from slipping. This stops longer documents from sliding under shorter ones to prevent the output order from changing
  • Thin Paper Scanning: Now you can continuously scan documents that are as thin as 0.04 mm. That makes it easy to scan thin forms or vouchers. And it increases the number of situations where you can use scanning - without worrying about thin paper.
  • Embossed Card Scanning: This model can scan up to three embossed cards, such as driver's licenses, consecutively
  • Mixed Paper and Hard Card Batch Scanning: This scanner was designed to be able to combine paper documents along with a hard ID card, such as a driver's license, in a single batch by using the mixed card batch guide
  • Long Paper Mode: The highly reliable paper feed system lets you scan documents up to 2540 mm (100 inches) in length. This is ideal for scanning electrocardiograms (EKG) or other special documents. This single scanner handles a wide variety of applications
  • Automatic Image Organization: Even when documents are set in different directions, this function detects the direction of the scanned text in documents and automatically rotates it into the correct direction. This boosts work efficiency by eliminating the need to change the direction of each page
  • Advanced Image Processing: The Automatic Brightness Adjustment function automatically adjusts the brightness and contrast of scanned images, even on documents with varying paper colors and text hues, to produce scanned images with suitable brightness
  • 2 Page Separation: This function automatically divides the single image into two single sheets. Dividing scanned documents saves time and trouble because it makes complex editing operations unnecessary
  • LED Lighting: The scanning section uses LEDs for its light source to lower power consumption while scanning.
  • Sleep Mode: Power consumption is suppressed to 1.6 watt maximum during sleep mode to save energy while the scanner is not being used.
  • Power Auto off function: The power automatically turns off at a preset time to cut down on wasted electricity.
  • Easy Maintenance: The clamshell design allows full, easy access to the entire paper path, so you can clear paper jams or clean the unit without calling a service center. The rollers last a long time and are easy to replace when worn, also improving the unit's cost-effectiveness
  • Auto Erase Security: Scanned data is automatically erased from the scanner memory as soon as scanning is completed. This basically eliminates the danger of information leaks and ensures the user of safe, secure scanning
  • Space Saving Installation: Its small footprint allows it to conveniently fit into small spaces, such as reception counters or desk sides. For example, placing it at the reception area of a bank or hospital allows customer or patient ID cards and other documents to be quickly scanned

Panasonic KV-S1046C Specifications

Scanning Type
Duplex scanning
Scanning Method
Color CIS (600 dpi)
Background: Black
Scanning Resolution
100 to 600 dpi (1dpi step)
Optical: 300 dpi / 600 dpi (Automatic switch)
Binary Speed: Portrait, 200 dpi
Letter Simplex: 45 ppm
Letter Duplex 90ipm
A4 Simplex: 45 ppm
A4 Duplex: 90ipm
Color Speed: Portrait, 200 dpi
Letter Simplex: 45ppm
Letter Duplex 90ipm
A4 Simplex: 45ppm
A4 Duplex: 90ipm
Automatic document feeder
Up to 75 sheets (80 g/m2, 20 lbs),
3 hard cards (ISO 7810 ID-1)
Image Output
MultiStream (bitonal & color or bitonal & grayscale), Binary mode, Grayscale mode, Color mode
Tonal Gradation (Bitonal Mode)
Dither, Error diffusion, Grayscale (8 bit), Binary
Image Compression
JPEG for color and grayscale
Other Functions
Length Control
Control sheet
Patch code detection (Type 2, 3, T) [ISIS]
Long paper mode
Double Feed Skip
Dog-ear Skip
Paper Size
Minimum: 48x70mm (1.9x2.8")
Maximum: 216x2,540mm (8.5x100")
Max. Scanning Page Size
216x2,540mm (8.5x100")
Paper Thickness
Single Feed: 0.04 to 0.2mm(1.6 to 7.9 mils)
Continuous Feed: 0.04 to 0.2mm(1.6 to 7.9 mils)
Business Card: Up to approx. 0.76 mm (0.03 in.) in thickness + embossing (ISO standard 7810 ID-1 card scanning including embossed card)
Paper Weight
20 to 209 g/m2
USB 2.0
Power Requirement
AC 100 - 240 V, 50 Hz/60 Hz
Power Consumption
Scanning: 25W
Standby: 8W
Sleep Mode: 1.0W or less
Power off Mode: 0.3 W or less
Operating Environment
15 deg.C to 30 deg.C (59 deg.F to 86 deg.F), 20% to 80% RH
Storage Environment
0 deg.C to 40 deg.C (32 deg.F to 104 deg.F), 10% to 80% RH
Dimensions (WxDxH)
12.5x8.2x7.7" (31.75x20.82x19.55cm)
4.0kg (8.81lbs)
Mfr #
