Panasonic AAG-MSU10 P2 Media Storage Unit with 256GB SSD

Panasonic AAG-MSU10: Picture 1 thumbnail Panasonic AAG-MSU10: Picture 2 thumbnail

List Price: $3,095.00

Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic AAG-MSU10

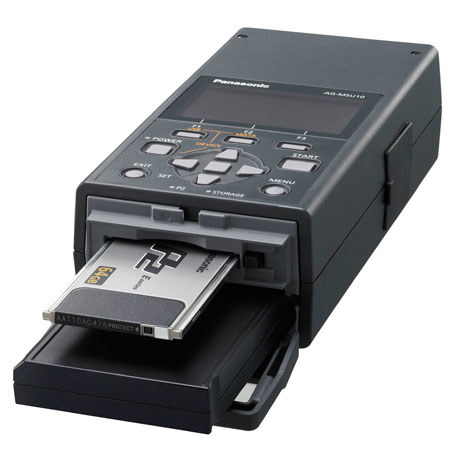

The Panasonic AG-MSU10 P2 Media Storage Unit with 256 GB SSD is a mobile storage device designed for backing up and transferring video footage from P2 memory cards to an internal solid state drive, external hard drive, or to a Mac or PC. With its rugged design, built-in P2 card slot, AC/DC operation and USB 2.0 and eSATA interfaces, the AG-MSU10 offers a range of options to insure your P2 video remains safe while in the field. A removable interface tray comes with a 2.5" 256 GB solid state drive included. The interface unit can be used internally or, using its own eSATA and USB connectors, as removable media hooked directly to a PC or Mac editing system.

Panasonic AAG-MSU10 Features

  • Fast Copying from a P2 Card to a Built-in Removable SSD: The AG-MSU10 has a P2 card slot and an interface box for housing a commercially available 2.5 type solid state drive (SSD) with Serial ATA interface (use a commercially available removable SSD that is recommended by Panasonic)
  • Backup onto an External HDD with eSATA/USB 2.0: The AG-MSU10 is equipped with eSATA and USB 2.0 interfaces (both Host and Device). In Host mode, files in the internal P2 card can be copied onto an external HDD at high speed without a PC /Mac
  • The Removable SSD Connects Directly to a PC/Mac: The removable SSD interface box is equipped with both eSATA and USB 2.0 connectors. It can be removed from the AG-MSU10 and connected directly to a PC, Mac or nonlinear editing system for use in Device mode
  • Single Button Copy and Thumbnail Display: Copying from a P2 card to a built-in SSD can be done swiftly with single-button operation. A clip thumbnail can also be displayed onto the built-in 82mm (3.2") LCD panel and images can be copied clip by clip
  • Compact, Lightweight, Robust Design and Battery Drive: The AG-MSU10, which has superb portability features and a compact, lightweight and robust design, can also be battery driven. The P2 card and SSD ensure reliable use even in extremely harsh shooting conditions

Panasonic AAG-MSU10 Specifications

Compatibility 1
Compatible 2.5" Solid State Drives - as of September 2010:
Intel - X25-M (SSDSA2MH160G2C1)
Intel - X25-M (SSDSA2MH080G2C1)
Intel - X25-E (SSDSA2SH064G101)
Samsung - PM800 (MMDOE56G5MXP-0VB)
SUPER TALENT - MasterDrive SX (SAM56GM25S)
PhotoFast - G-Monster V3 (PF25S64GSSDV3)
Crucial - M225 (CT128M225)
Compatibility 2
Crucial - RealSSD C300 (CTFDDAC128MAG-1G1)
OCZ Technology - Agility Series (OCZSSD2-1AGT120G)
OCZ Technology - Vertex Series (OCZSSD2-1VTX120G)
Corsair - Performance Series (CMFSSD-128GBG2D)
Corsair - Extreme Series (CMFSSD-128D1)
Corsair - Force Series (CSSD-F120GB2)
Kingston - SSDNow V+ (SNVP325-S2/128GB)
Patriot - Torqx (PFZ128GS25SSDR)
Silicon Power - SSD E10 (SP128GBSSDE10S25)
eSATA (1x Host, 1x Device)
USB 2.0 Host: Mini-B
USB 2.0 Device: Type A
Built-In Card Slot
SSD Interface Tray
Built-in Storage
DC 7.2 V with CGA-D54 battery (5400 mAh)
Supply Voltage
DC 7.2/7.9 V
Current consumption
1.1 A
Operating Temperature
0 deg.C to 40 deg.C (32 deg.F to 104 deg.F)
Operating Humidity
10 % to 80 % (no condensation)
Storage Temperature
-20 deg.C to 60 deg.C (-4 deg.F to 140 deg.F)
Storage Humidity
85 % or less (no condensation)
Dimensions (W x H x D)
99 x 58 x 212mm (3.89 x 2.28 x 8.34") Excluding protrusions
770 g (27.16 oz) Main unit only. without SSD interface box and Battery
