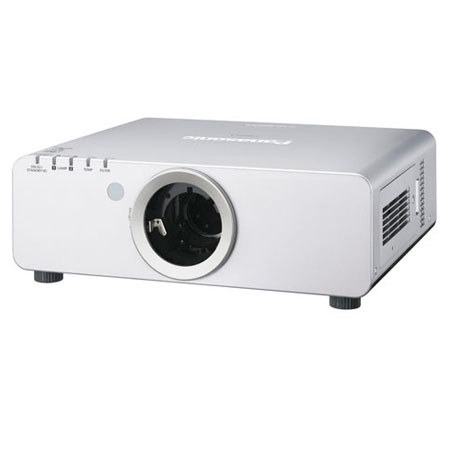

Panasonic PT-DZ770US WUXGA DLP Projector, 7000 ANSI Lumens Brightness, 2500:1 Contrast Ratio, 1920 x 1200 Resolution

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Free Shipping
Add to Wishlist

About the Panasonic PT-DZ770US

The Panasonic PT-DZ770US DLP Projector delivers 7000 lumens of brightness with WUXGA (1920 x 1200) resolution and a 2500:1 contrast ratio. In addition to the high brightness and resolution, incorporation of Panasonic's proprietary RGB booster, detail clarity processor and system daylight view 2 functions also help to enhance picture quality.

The projector has been designed to use an Eco Filter that can be used for up to 12,000 hours without cleaning, reducing both cost and environmental impact. The dual lamp system ensures that if one lamp goes out, another lamp will continue to run so that video content will not be interrupted by an unexpected lamp failure, making this projector ideal for education, digital signage, museums and rental and staging applications.

Panasonic PT-DZ770US Includes

  • Panasonic PT-DZ770US DLP Projector
  • Power Cord with Secure Lock
  • Wireless/Wired Remote Control Unit
  • AA-Type Batteries (2)
  • Panasonic 3 Year Warranty (Projector)
  • Panasonic 90 Day Warranty (Lamp)

Panasonic PT-DZ770US Specifications

Image Brightness 7000 ANSI lumens
Image Contrast Ratio 2500:1
Image Size 50 in - 600 in
Throw Ratio 1.7 - 2.4:1
Uniformity 90 %
Resolution WUXGA (1920 x 1200)
Native Aspect Ratio Widescreen
Video Bandwidth 162 MHz
Display Format 2,304,000 pixels (1920 x 1200)
Max Sync Rate (V x H) 85 Hz x 91 kHz
Lamp Type 2 x UHM 300 Watt
Networking Ethernet
Data Link Protocol Ethernet, Fast Ethernet
Lens Type Standard lens
Focus Type Powered
Lens Aperture F/1.7-1.9
Zoom Type Powered
Keystone Correction Direction Vertical
Vertical Keystone Correction -40 / +40
Lens Shift Type Powered
Lens Shift Direction Horizontal, Vertical
Vertical Lens Shift 50%
Horizontal Lens Shift 10% / 10%
Analog Video Signal RGB, S-Video, composite video, component video
Digital Video Standard Digital Visual Interface (DVI), High-Definition Multimedia Interface (HDMI)
Video Interfaces VGA, HDMI, composite video, S-Video, DVI
Video Modes 1080/24p, 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 1080/30p, 480/60i, 1080/25p, 576/50i, 1035/60i, 1080/24sF
LAN/Wireless Image Transferring Protocol Wired LAN
Input Device Type External
Expansion / Connectivity Interfaces: 1 x DVI-D input - 24 pin digital DVI, 1 x component video / RGB input - BNC x 5, 1 x component video / RGB input - 15 pin HD D-Sub (HD-15), 1 x composite video input - BNC, 1 x S-video input - 4 pin DIN, 1 x remote control input - 9 pin D-Sub (DB-9), 1 x remote control input - mini-phone 3.5 mm, 1 x remote control output - mini-phone 3.5 mm
Power Device Internal
Nominal Voltage AC 120 V ( 50/60 Hz )
Power Consumption Operational 830 Watt
Standby: 0.2 Watt
Min Operating Temperature 32 deg.F
Max Operating Temperature 113 deg.F
Humidity Range Operating 20 - 80% (non-condensing)
Dimensions (WxDxH) 19.6x18.3x6.9" / 49.7x46.4x17.5cm
Weight 35.9lbs / 16.2kg
