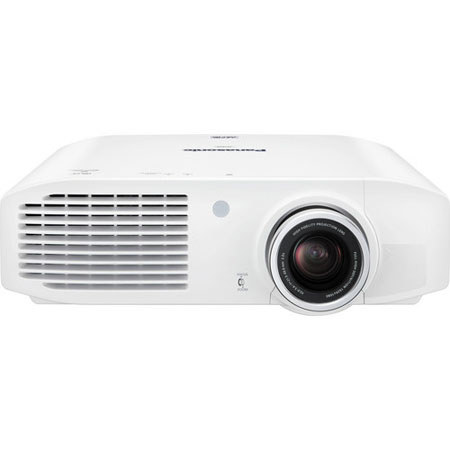

About Panasonic PT-LZ370U

The Panasonic PT-LZ370U LCD Projector is flexible and powerful enough to thrive in a variety of working conditions. With a brightness of 3000 lumens and a contrast ratio of 10,000:1 with Dynamic Iris Pro, the PT-LZ370U uses a single lamp and efficient focusing reflector to minimize consumption to only 350W. The PT-LZ370U enjoys multiple input terminals, which enhance flexibility. There are two HDMI, one RCA and one S-video input.

For network connections, the PT-LZ370U has an RS-232 and RJ-45 terminal. The PT-LZ370U includes a Web browser control for LAN operation. Through this connection, administrators can control and monitor multiple projectors at the same time. Any errors that occur at each projector are emailed back to the administrator's computer.

When installing the PT-LZ370U, plenty of features aides with proper installation. The horizontal and vertical lens shift will let you accommodate many room sizes and shapes and the zoom increases the chances that your existing ceiling mount will not need to be moved. Daylight View Premium helps with better color perception. It corrects the image quality to project sharp, clear images even in brightly lit rooms. The PT-LZ370U uses a wealth of features and functions to ensure quality video playback and vivid color reproduction.

Panasonic PT-LZ370U Features

  • Full-HD LCD Panel and Dynamic Iris Pro: The full HD (1920 x 1080-pixel) LCD panel of the PT-LZ370 produces the meticulous detail of full HD images. With its normally black system, the liquid crystal molecules are vertically aligned when no power is applied, to dramatically reduce unwanted light
  • 3000 Lumens of Brightness: The PT-LZ370 features a high-power 280W UHM lamp. Optimal utilization of this light source achieves a full 3000 lumens of brightness, for sharp, crisp images
  • Detail Clarity Processor 3 Gives Natural Clarity to Even the Finest Details: After a two dimensional analysis of the video signal's frequency in each scene and extracting information on the distribution of the super-high-, high-, medium- and low-frequency image components
  • Daylight View Premium for Better Color Perception: This function corrects the image quality to project sharp, clear images even in brightly lit rooms. A luminance sensor measures the ambient brightness & real time adjustment function optimizes sharpness and brightness according to the surroundings
  • Waveform Monitor for Precise Calibration: When the output level of the source device fluctuates due to the performance of the device or its cable connections, the original black and white levels of the image content cannot be reproduced. With the PT-LZ370, you can view the waveforms on the screen
  • DICOM Simulation Mode: This imaging mode is similar to DICOM Part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity. It also allows information to be shared by many viewers on a large screen, such as during medical conferences or training courses
  • Full 12-Bit Digital Signal Processing Achieves Smooth, Natural Gradation. The PT-LZ370 handles full 12-bit digital image processing. It faithfully reproduces even subtle hues and brightness variations. The resulting smooth gradation renders natural images with finely detailed nuances
  • 2x Zoom Lens and Wide Horizontal / Vertical Lens Shift: The 2x zoom lens and horizontal / vertical lens shift let you accommodate a wide range of room sizes and shapes. When lights or ventilation holes are located in the ceiling mounting site, you can simply relocate the projector to avoid them
  • Abundant Connection Terminals, Including HDMI: Interfaces include two sets of HDMI inputs. The serial terminal (RS-232C) has an emulate function that lets you continue using existing control systems when replacing previous Panasonic models. It is also possible to output audio during standby mode
  • Easy Remote Monitoring and Control over a LAN: A Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement and indicate the overall projector status
  • Crestron RoomView: The LAN terminal allows a computer connected to the network to use Crestron RoomView application software to manage and control system devices
  • Eco Management Functions: A number of functions are provided to reduce power consumption. They adjust the brightness according to ambient light conditions and reduce the lamp power when there is no signal input or the projector is in AV mute mode
  • Up to 3000 Hours Lamp / Filter Replacement Cycle and Simple Maintenance: The lamp & air filter both have replacement cycles of up to 3000 hours. This reduces the amount of bothersome maintenance necessary over a long period of time, cuts maintenance costs and helps to lower the environmental impact
  • Panasonic works from every angle to minimize environmental impact in the product design, production and delivery processes and in the performance of the product during its life cycle
  • No halogenated flame retardants are used in the cabinet
  • Non-coated cabinet for easy recycling
  • Lead free solder is used to mount components to the printed circuit boards
  • Lamp power switching further reduces power consumption
  • Standby power consumption of only 0.08W
  • Eco button on the remote control
  • An auto off timer switches the projector to standby mode when no input signal is received for a preset time

Panasonic PT-LZ370U Specifications

Panel Size
0.74" diagonal (16:9 aspect ratio)
Display Method
Transparent LCD panel (x 3, R/G/B)
2,073,600 (1,920 x 1,080) x 3, total of 6,220,800 pixels
280 W UHM lamp
3,000 lumens
Contrast Ratio
10,000:1 (all white/all black, with Dynamic Iris Pro on)
1,920 x 1,080 pixels
Manual zoom (1 - 2x), manual focus lenses, F 2.0 - 3.4, f 21.5 - 43.0 mm
Screen Size
1.02 - 7.62 m (40 - 300")
Optical Axis Shift
Vertical: ±65%, horizontal: ±26%
Scanning frequency - RGB
fH: 15.6-91.1 kHz, fV: 24.0-85.1 Hz, dot clock: 162.0 MHz or lower
Scanning Frequency - HDMI
525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i,1125 (1080)/50i, 1125 (1080)/60p, 1125 (1080)/50p, 1125 (1080)/24pDot clock: 25.2-162.0 MHz, displayable resolution: VGA-UXGA (non-interlace)
Scanning frequency - YPBPR (YCBCR) 1
525i (480i): fH 15.75 kHz; fV 60.0 Hz, 625i (576i): fH 15.63 kHz; fV 50.0 Hz,
525p (480p): fH 31.5 kHz; fV 60.0 Hz, 625p (576p): fH 31.25 kHz; fV 50.0 Hz,
750 (720)/60p: fH 45.0 kHz; fV 60.0 Hz, 750 (720)/50p: fH 37.5 kHz; fV 50.0 Hz,
1125 (1080)/60i: fH 33.75 kHz; fV 60.0 Hz, 1125 (1080)/50i: fH 28.13 kHz; fV 50.0 Hz
Scanning frequency - YPBPR (YCBCR) 2
1125 (1080)/24p: fH 27.0 kHz; fV 24.0 Hz, 1125 (1080)/60p: fH 67.5 kHz; fV 60.0 Hz
1125 (1080)/50p: fH 56.25 kHz; fV 50.0 Hz
NOTE: Not compatible with 3-value composite SYNC
Video / S-Video
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
HDMI 19-pin x 2, Deep Color, compatible with HDCP
Computer (RGB) IN
D-sub HD 15-pin (female) x 1
Component In
Video In
RCA pin x 1, 1.0 Vp-p, 75 ohms
S-Video In
Mini DIN 4-pin x 1
Audio IN
M3 (L, R) x 1
Audio OUT
M3 (L, R) x 1 (monitor out: 0-2.0 Vrms, variable)
Serial IN
D-sub 9-pin x 1 for external control (RS-232C compliant)
RJ-45 x 1, for network connection, 100Base-TX/10Base-T, compliant with PJLink
Keystone correction range
Vertical: approx. ±30deg.
Power Supply
100-240 V AC, 50/60 Hz
Power Consumption
350 W (0.08 W in standby mode)
Operating Temperature
0deg.-40deg.C (32deg.-104deg.F)
Operating humidity
20%-80% (no condensation)
Dimensions (WxHxD)
18-17/32x5-15/16x14-31/32" / 47.06x15.08x38.02cm
19.0lbs / 8.61kg
