Panasonic

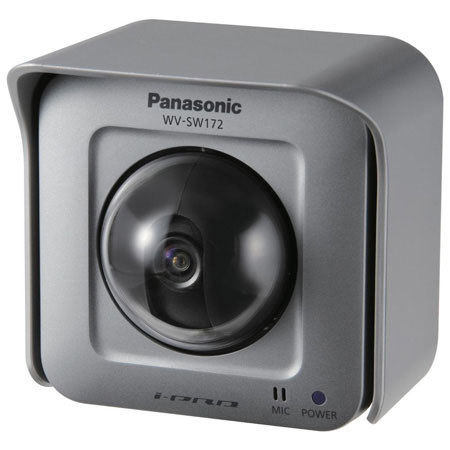

Panasonic WV-SW172 SVGA Outdoor Pan/Tilt Network Camera with Face Detection, 1.3MP, 8x Digital Zoom, 3D Digital Noise Reduction

SKU: PCWVSW172 MFR: WV-SW172

Our Price

$599.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: In Stock Online In Stock Online - Usually ships in 1-2 Days

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • High-sensitivity
  • 8x digital zoom controlled by browser
  • H.264 images can be transmitted over HTTP protocol
  • Outdoor & Night Vision Camera
  • Network/IP Camera
Panasonic WV-SW172: Picture 1 regular $599.00

About Panasonic WV-SW172

The Panasonic WV-SW172 SVGA Outdoor Pan/Tilt Network Camera with Face Detection offers high-quality 24-hour video surveillance in both day and night time lighting conditions. It is designed for day/night surveillance, this network camera captures clear images at F/2.2 even in locations with a minimum illumination of 0.5 lux (B&W). The Adaptive Black Stretch technology increases visibility of subjects in dark areas of a video scene without compromising the image quality of brighter areas. The face wide dynamic range technology offers blur-free images of the human face.

The pan & tilt functionality and preset map shot function allow wide area monitoring (Horizontal 180deg., Vertical 123deg.). Furthermore, with the progressive scan technology, you can be sure to obtain blur-free images even when the object is in motion. In addition, the UniPhier LSI chip enables this network camera to simultaneously stream real-time imagery in SVGA resolution of 800 x 600 at 30 fps. The electronic sensitivity enhancement function Auto (up to 16x) increases the quantity of light stored on the sensor, making the image brighter.

Equipped with Digital Noise Reduction technology, the camera filters signals that could result in grainy images. When any movement is detected, alarm sources, including VMD and Panasonic alarm command, trigger actions such as FTP image transfer and e-mail notification. The camera comes with an SD/SDHC memory card slot that provides an easy way for data backup upon network failure. As the WV-SW172 camera is Power over Ethernet (PoE) compatible, it can be installed almost anywhere without the need for an additional power supply. Furthermore, the IP55 rated water and dust-resistant housing allows this camera to be installed outdoors even in harsh weather conditions.

Panasonic WV-SW172 Features

  • 1.3 MP high-sensitivity MOS sensor delivers clear images of up to 800 x 600 pixels
  • Full frame (up to 30 fps) transmission at SVGA resolutions of up to 800 x 600
  • Adaptive Black Stretch technology improves the visibility of subjects in dark areas without compromising on image quality in brighter areas
  • Progressive scan ensures clear images with minimal blur even when the object is in motion
  • UniPhier LSI chip allows the camera to stream multiple H.264 videos and JPEG images for simultaneous real-time monitoring
  • High-sensitivity with day/night (electrical) function: 0.6 lux (color), 0.5 lux (B&W) at F2.2
  • Face detection function ensures blur-free images of the human face
  • 2-way audio with built-in microphone allows interactive communication between the camera and PC 1
  • Video Motion Detection feature triggers alarm when activity is detected in the 4 programmable zones
  • Electronic sensitivity enhancement function increases the quantity of light stored on the sensor, making the image brighter
  • Prioritized stream control allows one of the video streams to be prioritized when multiple recorders or client PCs are accessing the camera, so the prioritized recorder or client PC can maintain the frame rate
  • 8x digital zoom controlled by browser
  • SDHC/SD memory card slot provides backup in case of network failure
  • Privacy masking feature allows concealment of up to 2 private areas, such as entrances and exits
  • Integrated digital noise reduction ensures clear image reproduction by filtering signals that could result in grainy images
  • H.264 images can be transmitted over HTTP protocol
  • IP55 rated water & dust resistant housing ensures that the camera can be installed outdoors even in harsh weather conditions
  • Power over Ethernet (PoE) capability allows the camera to be installed almost anywhere without the need for an additional power supply

Panasonic WV-SW172 Specifications

Camera: Image Sensor
1/4 type MOS sensor
Camera: Effective Pixels
Approximately 1.3 megapixels
Camera: Scanning Mode
Progressive scan
Camera: Scanning Area
H x V: 3.52 x 2.64 mm
Camera: Minimum Illumination
Color: 0.6 lux, B&W: 0.5 lux at F2.2 (Shutter: 1/30 s, AGC: High)
Color: 0.038 lux, B&W: 0.031 lux at F2.2 (Shutter: 16/30 s, AGC: High)
Camera: White Balance
AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K)
Camera: Light Control Mode
Indoor scene (50 / 60 Hz) / ELC
Camera: Shutter Speed
ELC 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 s
Camera: Wide Dynamic Range
On / Off
Camera: Face Wide Dynamic Range
On / Off
Camera: Adaptive Black Stretch
On / Off
Camera: Automatic Gain Control
On (Low, Mid, High ) / Off
Camera: Electronic Sensitivity UP
Off / Auto (2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s) Maximum
Camera: Simple Day/Night Mode
Auto / Off
Camera: Dynamic Range
24 dB typical (WDR: On, Light Control: ELC)
Camera: Digital Noise Reduction (DNR)
High / Low
Camera: Video Motion Detection
On / Off, 4 areas available
Camera: Privacy Zone
Up to 2 zones, gray
Camera Title (OSD)
Up to 20 alphanumeric characters, On / Off
Lens: Focal Length
1.95 mm
Lens: Zoom Ratio
Extra zoom: 2x (at VGA resolution)
Lens: Angular Field of View
Horizontal: 85deg., Vertical: 68deg.
Lens: Maximum Aperture Ratio
1: 2.2
Lens: Focusing Range
0.5 m to infinity
Pan/Tilt: Panning Range
-47.5 to +47.5deg.
Pan/Tilt: Pan/Tilt Speed
Manual: Approximately 5 to 80deg./s, Preset: Up to approximately 80deg./s
Pan/Tilt: Tilting Range
-45 to +10deg.
Pan/Tilt: Preset Positions
64
Pan/Tilt: PTZ Position Display
On / Off
Pan/Tilt: Self Return
10 / 20 / 30 s / 1 / 2 / 3 / 5 / 10 / 20 / 30 / 60 min
Pan/Tilt: Map Shot
Preset map-shot
Browser GUI: Camera Control
Brightness, Aux On / Off
Browser GUI: Display Mode
Spot, Quad: Image from 16 cameras can be displayed in 4 different quad screens or 16 split screen (JPEG only)
Browser GUI: Zoom
Extra zoom(1 to 2x) and the electronic zoom (higher zoom factors, up to 16x)
Browser GUI: Camera Title
Up to 20 alphanumeric characters
Browser GUI: Clock Display
Time: 12 / 24H, Date: 5 formats on the browser, Daylight Savings Time (Manual)
Browser GUI: Alarm Control
Reset
Browser GUI: One Shot Capture
A still picture will be displayed on a newly opened window
Browser GUI: Audio
Mic (Line) Input: ON / OFF
Volume adjustment: Low / Middle / High
Audio Output: ON / OFF
Volume adjustment: Low / Middle / High
Browser GUI: SD Memory Data Download
Still or motion images recorded on the SDHC/SD memory card can be downloaded
Browser GUI: GUI/Setup Menu Language
English, Japanese, Italian, French, German, Spanish, Chinese, Russian
Browser GUI: System Log
Up to 100 (Internal)
Up to 4,000 (SDHC/SD memory when the recording format is set to JPEG) error logs
Browser GUI: Supported OS
Microsoft Windows 7
Microsoft Windows Vista
Microsoft Windows XP SP3
Browser GUI: Supported Web Browsers
Windows Internet Explorer 9.0 (32 bit)
Windows Internet Explorer 8.0 (32 bit)
Windows Internet Explorer 7.0 (32 bit)
Microsoft Internet Explorer 6.0 SP3
Network: Network IF
10Base-T / 100Base-TX, RJ-45 connector (female)
Network: Aspect Ratio
4:3
H.264: 800 x 600 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
JPEG: 800 x 600 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
16:9
H.264: 640 x 360 / 320 x 180, up to 30 fps
JPEG: 640 x 360 / 320 x 180, up to 30 fps
Network: Transmission mode
Constant bitrate / Best effort
Network: Frame Rate
H.264: 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
Network: Bit Rate/Client
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192 kbps
Network: Image Quality
H.264: Low / Normal / Fine
JPEG: 10 steps
Network: Refresh Interval
H.264: 1 to 30 fps
JPEG: 0.1 to 30 fps
Network: Transmission Types
H.264: Unicast / Multicast
JPEG: Pull / Push
Network: Audio Compression
G.726 (ADPCM) 32 / 16 kbps, G.711 64 kbps
Network: Audio Mode
Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Network: Authentication for Audio
Level 1 only / Level 2 higher / All users
Network: Total Bit Rate
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
Network: Supported Protocols
IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, ICMPv6
IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP,SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
Network: FTP Client
Alarm image transmission, FTP periodic transmission
Network: Max Concurrent Access Number
Up to 14 users
Network: Memory Card
SDHC memory card: 4, 8, 16, 32 GB
SD memory card: 256, 512 MB, 1, 2 GB
Network: Cellular Phone Compatibility
JPEG image, panning/tilting/zoom control, AUX control (by access level)
Network: Mobile Terminal Compatibility
iPad, iPhone, iPod touch (iOS 4.2.1 or later)
Network: Face Detection
On / Off
Alarm: Alarm Source
VMD, Command alarm
Alarm: Alarm Actions
SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
Alarm: Alarm Log
With SDHC/SD memory card: 5,000 logs, without SDHC/SD memory card: 1,000 logs
Alarm: Schedule
VMD
Monitor Output
VBS: 1.0 V (p-p)/75 Ohms, NTSC composite, °3.5 mm mini jack
Microphone/Line Input
°3.5 mm monaural mini jack, Input impedance: Approx. 2.2 kOhms
For microphone input: Applicable microphone: Plug-in power type, Supply voltage: 3.3 ±0.5 V
For line input: Input level: Approximately -10 dBV
Audio Output
°3.5 mm stereo mini jack (monaural output),Output impedance: approximately 560 Ohms, Line level
External I/O Terminals
Alarm In 1 / Alarm In 2 / Alarm Out, Alarm In 3 / Aux Out, GND. 12 VDC
Safety/EMC Standard
DOC (ICES003 Class A)
Power Source and Consumption
PoE (IEEE802.3af compliant), 12 VDC
PoE: 130 mA (Class 2 device), 12 VDC: 430 mA
Ambient Operating Temperature
-4 to 122deg.F (-20 to +50deg.C)
Ambient Operating Humidity
90 % or less (without condensation)
Water and Dust Resistance
Camera: IP55 (IEC60529)
Finish
Main body: PC/ABS resin, silver
Dome section: Clear polycarbonate resin
Dimensions (W x H x D)
3.94 x 3.94 x 2.92" / 100.07 x 100.07 x 74.16mm
Weight
0.77lbs / 0.34kg
Mfr #
WV-SW172
SKU
PCWVSW172
