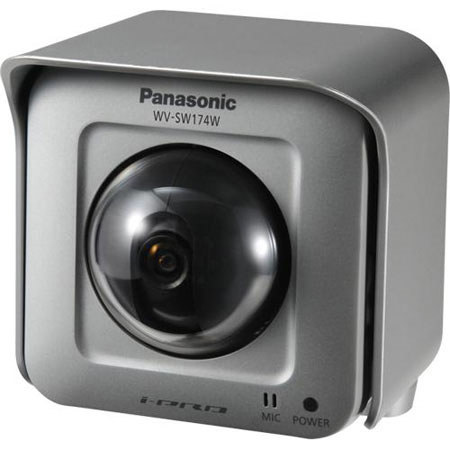

Panasonic WV-SW174W HD Outdoor Pan/Tilt Wireless Network Camera, 1.3MP, Wi-Fi Protected Setup / Wireless LAN, 2x Zoom Ratio

Panasonic
SKU: PCWVSW174W MFR: WV-SW174W
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify when in stock

Our Price

$558.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Panasonic WV-SW174W: Picture 1 regular $558.00

About Panasonic WV-SW174W

The Panasonic WV-SW174W HD Outdoor Pan/Tilt Wireless Network Camera offers high-quality 24-hour video surveillance in both day and night time lighting conditions. It is designed for day/night surveillance, this network camera captures clear images at F/2.2 even in locations with a minimum illumination of 0.5 lux (B&W). The Adaptive Black Stretch technology increases visibility of subjects in dark areas of a video scene without compromising the image quality of brighter areas. The face wide dynamic range technology offers blur-free images of the human face.

The pan & tilt functionality and preset map shot function allow wide area monitoring (Horizontal 180deg., Vertical 123deg.). Furthermore, with the progressive scan technology, you can be sure to obtain blur-free images even when the object is in motion. In addition, the UniPhier LSI chip enables this network camera to simultaneously stream real-time imagery in HD resolution of 1280 x 960 at 30 fps. The electronic sensitivity enhancement function Auto (up to 16x) increases the quantity of light stored on the sensor, making the image brighter.

The wireless LAN function (IEEE802.11 n/g/b) allows the captured images to be monitored over a wireless router. Furthermore, Wi-Fi Protected Setup enables the camera to automatically obtain the connection and security configuration settings of the wireless router. Equipped with Digital Noise Reduction technology, the camera filters signals that could result in grainy images. When any movement is detected, alarm sources, including VMD and Panasonic alarm command, trigger actions such as FTP image transfer and e-mail notification. Furthermore, the IP55 rated water and dust-resistant housing allows this camera to be installed outdoors even in harsh weather conditions.

Panasonic WV-SW174W Features

  • 1.3 MP high-sensitivity MOS sensor delivers clear images of up to 1280 x 960 pixels
  • Full frame (up to 30 fps) transmission at HD resolutions of up to 1280 x 960
  • Adaptive Black Stretch technology improves the visibility of subjects in dark areas without compromising on image quality in brighter areas
  • Progressive scan ensures clear images with minimal blur even when the object is in motion
  • UniPhier LSI chip allows the camera to stream multiple H.264 videos and JPEG images for simultaneous real-time monitoring
  • High-sensitivity with day/night (electrical) function: 0.6 lux (color), 0.5 lux (B&W) at F2.2
  • Face detection function ensures blur-free images of the human face
  • 2-way audio with built-in microphone allows interactive communication between the camera and PC 1
  • Video Motion Detection feature triggers alarm when activity is detected in the 4 programmable zones
  • Wireless LAN function (IEEE802.11 n/g/b): Camera images can be monitored over a wireless router
  • WPS (Wi-Fi Protected Setup) function enables the camera to automatically obtain the connection and security configuration settings of the wireless router
  • Electronic sensitivity enhancement function increases the quantity of light stored on the sensor, making the image brighter
  • Prioritized stream control allows one of the video streams to be prioritized when multiple recorders or client PCs are accessing the camera, so the prioritized recorder or client PC can maintain the frame rate
  • 8x digital zoom controlled by browser
  • Camera can be directly controlled from a smartphone
  • Privacy masking feature allows concealment of up to 2 private areas, such as entrances and exits
  • Integrated digital noise reduction ensures clear image reproduction by filtering signals that could result in grainy images
  • H.264 images can be transmitted over HTTP protocol

Panasonic WV-SW174W Specifications

Camera: Image Sensor
1/4 type MOS sensor
Camera: Effective Pixels
Approximately 1.3 megapixels
Camera: Scanning Mode
Progressive scan
Camera: Scanning Area
H x V: 3.52 x 2.64 mm
Camera: Minimum Illumination
Color: 0.6 lux, B&W: 0.5 lux at F2.2 (Shutter: 1/30 s, AGC: High)
Color: 0.038 lux, B&W: 0.031 lux at F2.2 (Shutter: 16/30 s, AGC: High)
Camera: White Balance
AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K)
Camera: Light Control Mode
Indoor scene (50 / 60 Hz) / ELC
Camera: Shutter Speed
ELC 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 s
Camera: Wide Dynamic Range
On / Off
Camera: Face Wide Dynamic Range
On / Off
Camera: Adaptive Black Stretch
On / Off
Camera: Automatic Gain Control
On (Low, Mid, High ) / Off
Camera: Electronic Sensitivity UP
Off / Auto (2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s) Maximum
Camera: Simple Day/Night Mode
Auto / Off
Camera: Dynamic Range
24 dB typical (WDR: On, Light Control: ELC)
Camera: Digital Noise Reduction (DNR)
High / Low
Camera: Video Motion Detection
On / Off, 4 areas available
Camera: Privacy Zone
Up to 2 zones, gray
Camera Title (OSD)
Up to 20 alphanumeric characters, On / Off
Lens: Focal Length
1.95 mm
Lens: Zoom Ratio
Extra zoom: 2x (at VGA resolution)
Lens: Angular Field of View
Horizontal: 85deg., Vertical: 68deg.
Lens: Maximum Aperture Ratio
1: 2.2
Lens: Focusing Range
0.5 m to infinity
Pan/Tilt: Panning Range
-47.5 to +47.5deg.
Pan/Tilt: Pan/Tilt Speed
Manual: Approximately 5 to 80deg./s, Preset: Up to approximately 80deg./s
Pan/Tilt: Tilting Range
-45 to +10deg.
Pan/Tilt: Preset Positions
64
Pan/Tilt: PTZ Position Display
On / Off
Pan/Tilt: Self Return
10 / 20 / 30 s / 1 / 2 / 3 / 5 / 10 / 20 / 30 / 60 min
Pan/Tilt: Map Shot
Preset map-shot
Browser GUI: Camera Control
Brightness, Aux On / Off
Browser GUI: Display Mode
Spot, Quad: Image from 16 cameras can be displayed in 4 different quad screens or 16 split screen (JPEG only)
Browser GUI: Zoom
Extra zoom(1 to 2x) and the electronic zoom (higher zoom factors, up to 16x)
Browser GUI: Camera Title
Up to 20 alphanumeric characters
Browser GUI: Clock Display
Time: 12 / 24H, Date: 5 formats on the browser, Daylight Savings Time (Manual)
Browser GUI: Alarm Control
Reset
Browser GUI: One Shot Capture
A still picture will be displayed on a newly opened window
Browser GUI: Audio
Mic (Line) Input: ON / OFF
Volume adjustment: Low / Middle / High
Audio Output: ON / OFF
Volume adjustment: Low / Middle / High
Browser GUI: SD Memory Data Download
Still or motion images recorded on the SDHC/SD memory card can be downloaded
Browser GUI: GUI/Setup Menu Language
English, Japanese, Italian, French, German, Spanish, Chinese, Russian
Browser GUI: System Log
Up to 100 (Internal)
Up to 4,000 (SDHC/SD memory when the recording format is set to JPEG) error logs
Browser GUI: Supported OS
Microsoft Windows 7
Microsoft Windows Vista
Microsoft Windows XP SP3
Browser GUI: Supported Web Browsers
Windows Internet Explorer 9.0 (32 bit)
Windows Internet Explorer 8.0 (32 bit)
Windows Internet Explorer 7.0 (32 bit)
Microsoft Internet Explorer 6.0 SP3
Antenna
802.11n: 1 x 1 (Diversity)
Transmission System
SISO (Single Input/Output)-OFDM system, OFDM system, DSSS system
Standard
International standard IEEE802.11 n/g/b compliant
Frequency Range
IEEE802.11 n/g/b
2.412 to 2.462 GHz (1 to 11 ch)
Data Transfer Rate
IEEE802.11 n: 6.5 to 72.2 Mbps
IEEE802.11 g: 6 to 54 Mbps
IEEE802.11 b: 1 to 11 Mbps
Access Methods
Infrastructure mode
Authentication
Open System
Security
WPA/WPA2-PSK (TKIP/AES)
WEP (64 / 128 bit)
WPS (Wi-Fi Protected Setup)
PBC method (push button method), PIN method (PIN code method)
LED
Wireless (wireless status display)
Interface
Wireless button (for setting up WPS with the PBC method)
Network: Network IF
10Base-T / 100Base-TX, RJ-45 connector (female)
Network: Aspect Ratio
4:3
H.264: 800 x 600 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
JPEG: 800 x 600 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
16:9
H.264: 640 x 360 / 320 x 180, up to 30 fps
JPEG: 640 x 360 / 320 x 180, up to 30 fps
Network: Transmission mode
Constant bitrate / Best effort
Network: Frame Rate H.264
1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
Network: Bit Rate/Client
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192 kbps
Network: Image Quality
Low / Normal / Fine
Network: Refresh Interval
H.264: 1 to 30 fps
Network: Transmission Types
Unicast / Multicast
Network: Image Quality: JPEG
JPEG: 10 steps
Network: Refresh Interval: JPEG
JPEG: 0.1 to 30 fps
Network: Transmission Types: JPEG
JPEG: Pull / Push
Network: Audio Compression
G.726 (ADPCM) 32 / 16 kbps, G.711 64 kbps
Network: Audio Mode
Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Network: Authentication for Audio
Level 1 only / Level 2 higher / All users
Network: Total Bit Rate
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
Network: Supported Protocols
IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, ICMPv6
IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP,SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
Network: FTP Client
Alarm image transmission, FTP periodic transmission
Network: Max Concurrent Access Number
Up to 14 users
Network: Memory Card
SDHC memory card: 4, 8, 16, 32 GB
SD memory card: 256, 512 MB, 1, 2 GB
Network: Cellular Phone Compatibility
JPEG image, panning/tilting/zoom control, AUX control (by access level)
Network: Mobile Terminal Compatibility
iPad, iPhone, iPod touch (iOS 4.2.1 or later)
Network: Face Detection
On / Off
Alarm: Alarm Source
VMD, Command alarm
Alarm: Alarm Actions
E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
Alarm: Alarm Log
1,000 logs
Alarm: Schedule
VMD
Monitor Output
VBS: 1.0 V (p-p)/75 Ohms, NTSC composite, °3.5 mm mini jack
Microphone/Line Input
Dia. 3.5 mm monaural mini jack, Input impedance: Approx. 2.2 kOhms
For microphone input: Applicable microphone: Plug-in power type, Supply voltage: 3.3 ±0.5 V
For line input: Input level: Approximately -10 dBV
Audio Output
Dia. 3.5 mm stereo mini jack (monaural output),Output impedance: approximately 560 Ohms, Line level
External I/O Terminals
Alarm In 1 / Alarm In 2 / Alarm Out, Alarm In 3 / Aux Out, GND. 12 VDC
Safety/EMC Standard
DOC (ICES003 Class A), Wireless: FCC Part15C
Power Source and Consumption
12 VDC, 510 mA
Ambient Operating Temperature
-4 to 122deg.F (-20 to +50deg.C)
Ambient Operating Humidity
90 % or less (without condensation)
Water and Dust Resistance
Camera: IP55 (IEC60529)
Dimensions (W x H x D)
3.94 x 3.94 x 3.31" / 100.07 x 100.07 x 84.07mm
Weight
0.82lbs / 0.37kg
Mfr #
WV-SW174W
SKU
PCWVSW174W
