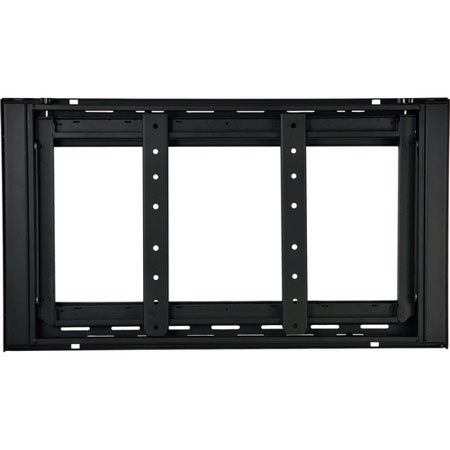

Peerless DS-VW660 Video Wall Mounting Solution for 40" to 65" Displays

Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist

About the Peerless DS-VW660

The Peerless DS-VW660 mount is the latest flat wall mounting solution for easily and quickly installing either small or large video wall configurations. In contrast to standard video wall installations, the DS-VW660 mount includes innovative features that simplify the full installation process, reducing gaps between display units and minimizing tedious calculations and guesswork.

The DS-VW660 is engineered to support a wide variety of display configurations while ensuring each mount is positioned for the specific display being used, which reduces on-site measuring and guesswork by utilizing custom-fit wall plate alignment spacers. Display alignment is made easy with four points of tool-less adjustment on each DS-VW660 model - ensuring each display will be level in its environment.

Peerless DS-VW660 Includes

  • Peerless Wall Plate
  • Wall Mount Assembly
  • Mounting Attachment Rails
  • Security Hardware
  • Fastener Pack
  • Peerless 5 Years Limited Warranty

Peerless DS-VW660 Features

  • Modular mount for unlimited video wall display configurations
  • Custom wall plate spacers eliminate guesswork and on-site installation calculations
  • Tool-less micro-adjustments at 4 points seamlessly align the displays
  • Displays and mounts sit flush against the wall for a clean profile
  • Snug fit at the attachment point to the display's mounting hole pattern ensures that each display hung in succession is aligned at the same point
  • Integrated cable management tie-backs make display-to-display cabling simple
  • Landscape display orientation
  • Adjustable VESA mounting hole patterns in 100mm increments, starting at 200x200mm up to 600x400mm, additional patterns supported with adapter plates
  • Includes hardware for installation to wood, concrete or cinder block
  • Supports displays up to 200lb (90.9kg)

Peerless DS-VW660 Specifications

Compatibility 40" to 65" displays
Finish Scratch resistant fused epoxy
Load Capacity 200lbs (90.7kg)
Dimensions (W x H x D) 35" x 20" x 3.0" (889 x 508 x 76.2mm)
Weight 36lbs (16.32kg)
