Peerless Universal Articulating Wall Mount for 37-63" Flat Panel Displays - Black


About Peerless SA763PU

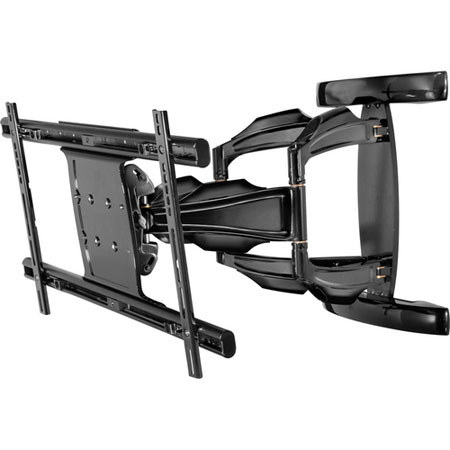

The Peerless SA763PU Universal Articulating Wall Arm is the ideal way to maximize viewing enjoyment of flat panel TVs measuring 37" to 63".

The arm extends the display screen a full 27.55" from the wall, while permitting a full 180 degrees of lateral movement. Other adjustments include +/-15 degrees of tilt, 90 degrees of swivel, +/-5 degree roll and 1" of vertical adjustment for final leveling.

The Peerless Universal Articulating Wall Arm employs cable management to minimize the visual clutter of cabling and may be used in landscape or portrait orientation. The mount includes a universal interface bracket which fits most displays in the 37" to 63" range.

Peerless SA763PU Features

  • Universal design provides compatibility for 37" to 63" flat panel screens with mounting patterns up to 27" x 17.29" (686 x 439 mm)
  • Screen can be held as close to the wall as 4.55" (116 mm) or be extended as far as 27.55"(700 mm)
  • Integrated cable management contains, protects and conceals cables for a clean clutter-free look
  • One-touch tilt allows for +15 degrees/-5 degrees without the use of tools for easy viewing angle adjustment
  • Multi-link construction allows for a full 180-degree range of motion
  • ±5 degrees of roll allows for post installation leveling
  • Screen can be rotated from portrait to landscape without removing the screen for easy orientation changes
  • 1" (25 mm) vertical adjustment for screen position fine tuning

Peerless SA763PU Specifications

Mount Type
Articulating Wall Arm
Depth From Mounting Source
4.55" / 11.6cm
Max Equipment Size
63" / 160cm
Tilt: +/-15deg.Extension: 4.55 to 27.55" / 11.55 to 70cm
Swivel: 90deg.
Roll: +/-5deg.
1" / 2.5cm vertical adjustment
Aluminum, steel
Weight Capacity
200lbs / 90.71kg
Folded Flat: 28.7 x 17.3 x 4.55" / 72.9 x 44 x 11.55cm
50lbs / 22.67kg

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  does this handle a 55"samsung and weight of 100 pounds?
VAN S  looks like it will as we have a TV (73 pounds) and a cover(40 pounds) which everyone says it will hold and based on the quality, it seems accurate.
