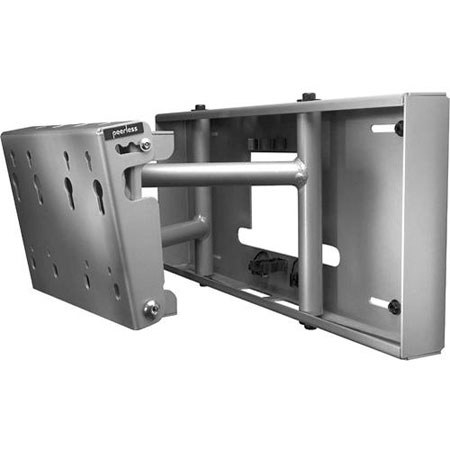

Peerless SP850-UNLP Pull-Out Swivel Mount for 32" to 65" Flat Panel Screens, 150lb Load Capacity, Silver

Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Peerless SP850-UNLP

The Peerless SP850-UNLP Pull-Out Swivel Mount (Silver) combines the best features of a wall mount and a pivot arm. In the closed position, it acts as a flat or tilting wall mount. At only 3.4" away from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, its sturdy arm construction smoothly glides the screen out 11.9" from the wall and allows the screen to pivot up to 45 degree. This feature not only enables the screen to be positioned for an optimal viewing angle, but it also provides easy access to the back of the screen for maintenance. It is also ideal in applications where the screen needs to be recessed into a cubby hole, custom frame or aligned into a video wall.

Peerless SP850-UNLP Features

  • Pull-out swivel with up to 45 degree rotation depending on screen size
  • Locking tab provides optional swivel restriction to one side
  • 3.4" deep in closed position, up to 11.9" fully extended
  • 0 degree, 5 degree or 10 degree lockable incremental tilt
  • +/-1 degree roll for horizontal screen alignment during installation
  • Built-in cord management
  • Lock Key installation tool secures arms for screen installation
  • Lock-out screw prevents unwanted extension
  • Mounts to 16" wood studs, concrete, cinder block

Peerless SP850-UNLP Specifications

Mount Type
Swivel Wall
Tilt: 0, 5 or 10deg.
Swivel: ±45deg.
Roll: ±1deg.
Mounting pattern (W x H)
28.7" x 17.05" (729 x 433 mm)
Distance from wall
3.4"-11.9" (86-302 mm)
Mounting Surfaces
Wood stud, concrete and cinder block
Load Capacity
150lb / 68kg
Dimensions (W x H x D)
30.75 x 18 x 3.4" - 11.9" / 781 x 457 x 86 - 302mm
