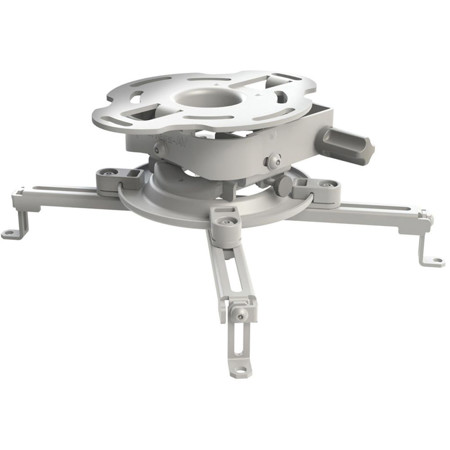

The Peerless PRGS-UNV Projector Mount (White) is simplifying the way image alignment is done. The precision gear design allows exact tilt and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place. It will hold its position better than the competition, even during projector maintenance.
|Swivel Yaw||360 degrees|
|Roll||-5 / +5 deg.|
|Tilt||-20 / +15 deg.|
|Distance from Ceiling||3.63-4.63" / 92.20-117.6mm|
|Mounting Pattern||17.63 x 17.63" / 44.78 x 44.78cm|
|Load Capacity||50lbs / 22.67kg|
|Dimensions||8.50-17.63 x 3.63 - 4.63 x 8.50-17.63" (216-448 x 92-118 x 216-448mm)|
