Peerless

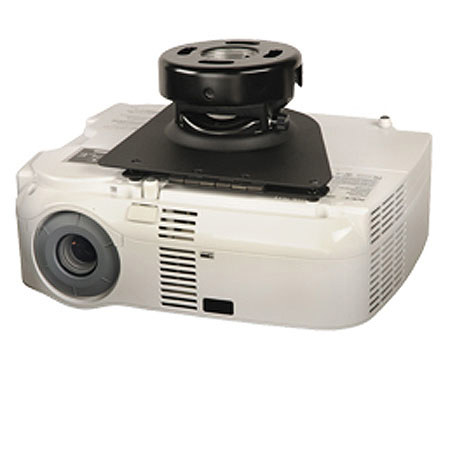

Peerless Clamp-Style Universal Projector Mount Kit with PAP-45 Adapter Plate, Black

SKU: PEPRS45 MFR: PRS45
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$255.00 List Price

Our Price

$146.95 $6 per week
Free Shipping
Qty:
Add to Wishlist

About this item

The Peerless Clamp-Style Universal Projector Mount Kit with PAP-45 Adapter Plate (Black) is designed and built with both professional visual presentation pundits and home theater enthusiasts in mind, the Peerless Clamp-Style Universal Projector Mount Kit combines unsurpassed durability and versatility, with the ability to support and securely mount virtually any projector up to 25 lbs (11.3kg) anywhere on a ceiling surface. This kit is configured with the low-profile ceiling mount and large-sized, adjustable clamp-style adapter plates; it offers exceptional design and strength in a simple form factor and offers a very shallow mounting depth of only 2.2".

This mount enables projector-to-screen registration with 360deg. rotation (with optional extension column), 30deg. swivel (flush mounted), independent ±10deg. roll and +5deg./-20deg. pitch/tilt adjustments. It features a beefy aluminum alloy construction, fine tuning adjustments, Armor Lock security and cable management - integrates easily with a slew of Peerless' ceiling mount accessories, couples to standard 1.5" NPT steel pipe.

What's Included With This Item

  • Peerless Clamp-Style Universal Projector Mount
  • Adjustable Clamp-Style Adapter Plate Kit (Large-Sized)
  • Screw Pack
  • Peerless Warranty

Key Features

  • +5deg./-20deg. Pitch, +/-10deg. Roll, 360deg. Yaw (when attached to an extension column), +/-15deg. Yaw (when flush mounted), which enables the image to be perfectly aligned with the screen
  • Independent roll, pitch and yaw adjustments provide easy image alignment
  • Can be mounted directly to a single wood beam or concrete slab without disassembling the mount and without reinforcing the ceiling
  • Can attach to 1 1/2" extension column, 3/4" extension column, or 3/8" threaded rod
  • Armor Lock security screws pre-installed for a secure installation in minutes
  • Quickly release the projector for maintenance with the simple turn of a knob
  • Built in cord management access hole provides complete access to route cords through extension column to keep cords hidden
  • 4 adjustment points allow a quick, simple installation
  • Final security lock down is optional to use
  • Easily and quickly attaches to clamp-style universal adapter plat
  • Universal clamp designed to hold projectors either inverted or upright
  • Ideal for projectors that do not have mounting holes or cannot be inverted
  • Large side openings in clamp provide access to projector ports
  • Low profile allows the projector to be close to the ceiling

Technical Specs

Depth From Mounting Source 2.2" (55.8mm) Base Mount
Adjustments Roll: ±10deg.
Pitch: +5deg./-20deg.
Yaw: 360deg. with extension column
30deg. swivel when flush mounted
Coupling 1.5" (38.1mm) NPT
Construction Aluminum Alloy (Base Mount)
Load Capacity 25 lbs (11.3kg)
Dimensions Base Mount: 4.6 x 4.6 x 2.2" (116.8 x 116.8 x 55.8mm)
Projector Plate: 7.1 - 16.55 x 6.71 - 7.64 x 7.1 - 16.55" (180.3 - 420.3 x 170.4 - 194 x 180.3 - 420.3mm)
Weight Base Mount: 2.5 lbs (1.1kg)
