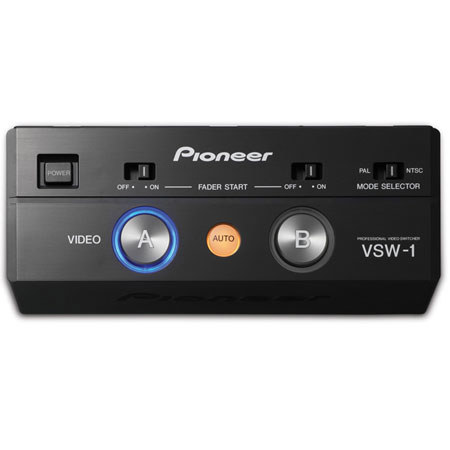

Pioneer VSW-1 Automatic Video Switcher

Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$500.00 List Price

Our Price


Add to Wishlist

About the Pioneer Electronics VSW-1

The Pioneer VSW-1 is simple in its design and extremely easy to use, ensuring that DVJs are able to mix audio/video content from separate sources without relying upon multiple independent devices or needing another artist in the DVJ booth. This Video Switcher gives performers more freedom in the mix because they can automatically switch video sources (by pressing the red "Auto" button) when using the familiar Fader Start capability found in all of Pioneer's Pro DJ mixers. The VSW-1 video switcher gives top DVJs the flexibility they need to take full advantage of Pioneer's revolutionary DVJ-X1.

Pioneer Electronics VSW-1 Includes

  • Pioneer VSW-1 Automatic Video Switcher
  • 2 x BNC Cables
  • 2 x Control Cables
  • Operating Instructions
  • Pioneer 1 Year & Labor Warranty

Pioneer Electronics VSW-1 Features

  • Quick response: Using the latest circuit technology, this unit suppresses noises and color distortion even during sudden switchovers.
  • Automatic switching: Can be combined with a Pioneer DJ mixer for video switching linked to the fader start mode.
  • Full complement of input/output connectors: Supports component video, S-Video and composite video IN/OUT signals.

Pioneer Electronics VSW-1 Specifications

Compatibility DVJ-X1 System
Video input section Component video BNC connectors x 3 (2 systems):
1 Vp-p / 75 Ohm
CB/PB: 0.7 Vp-p / 75 Ohm
CR/PR: 0.7 Vp-p / 75 Ohm
S-Video S connector (2 systems):
Y: 1 Vp-p / 75 Ohm
C: 0.286 Vp-p / 75 Ohm
Composite vide RCA connector (2 systems): 1 Vp-p / 75 Ohm
Video output section Component vide BNC connectors x 3 (1 system):
Y: 1 Vp-p / 75 Ohm
CB/PB: 0.7 Vp-p / 75 Ohm
CR/PR: 0.7 Vp-p / 75 Ohm
S-Vide S connector (1 system):
Y: 1 Vp-p / 75 Ohm
C: 0.286 Vp-p / 75 Ohm
Composite vide RCA connector (1 system): 1 Vp-p / 75 Ohm
Sync output: BNC connector (2 systems) 1 Vp-p / 75 Ohm
Supported video modulation systems NTSC/PAL
Control input minijack (3.5 dia) 2 systems
Control output minijack (3.5 dia) 2 systems
Power AC110-120 V / 220 - 240 V
Power consumption 9 W
Operating temperature + 5C° to + 35C°
Operating humidity 5 -85 % R.H. (without precipitation)
External dimensions (W x D x H) 25 x 9 x 8.6 cm
Weight 1.4 kg
