Pulsar Recon X550 Digital Night Vision Monocular, 5.5x Magnification, 12mm Eye Relief

See all Pulsar items
SKU: PL78026 MFR: PL78026

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

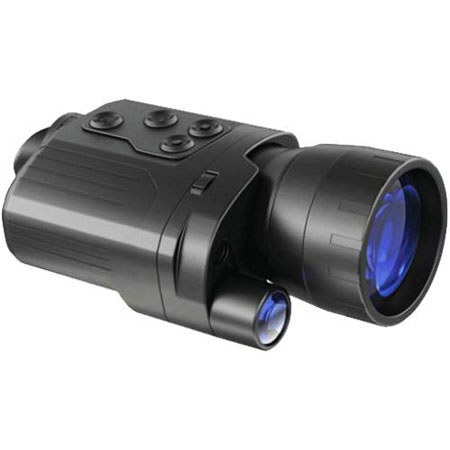

Pulsar PL78026: Picture 1 regular $999.99

About Pulsar PL78026

The Recon X550 is a compact and ergonomic digital night vision device featuring high light gathering capacity (F/d = 1.0). High sensitive CCD array and Sum Light signal processing program ensure a great viewing range up to 400 m.

The Recon X550 is outfitted with a jack enabling connection of peripheral equipment; it functions both in video out mode and video in mode. Video out mode allows video recording without use of adaptors and camcorders or cameras; video in mode can be employed to transmit image via radio channel from remote cameras to Recon's display.

The built-in IR illuminator (805 nm wavelength is optimal for night vision) permits the device to operate in complete darkness. Optionally you may use with the Recon X550 additional, more powerful infrared illuminators including "invisible" version (940 nm). The Recon X550 has a specially designed mount combining Weaver and 1/4" standards to affix various accessories.

Pulsar PL78026 Features

  • Sensitive CCD array
  • High Optical Magnification
  • High Aperture Lens (F/d=1.0)
  • Signal Processing Program Sum Light (model Recon X550)
  • New Eyepiece Enhancing Image Sharpness/ Contrast
  • Compact & Lightweight
  • Resistant to Bright Light Exposure
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Pulsar PL78026 Specifications

Lens diameter
Max. detection range
Eye Relief
Field of view,
5.5 degree
Diopter Adjustment,
±5 diopter
Resolution, lines per mm, min
= 50
Power Supply
6V (4xAA)
Operating time (without/with IR)
5 / 4hour
Video Output Signal Standard
Camera resolution, pixel (CCIR / EIA)
752x582 / 768x494
Type of CCD sensor CCIR / EIA
SONY ICX-659AL 1/3 / SONY ICX-658AL 1/3
Min/max working illuminance
0.0001 / 30000
Operating Temperature
-10deg.C -+45deg.C
Tripod mount
176 x 83 x 62 mm / 6.92 x 3.26 x 2.44 inches
0.5 kg / 18oz
