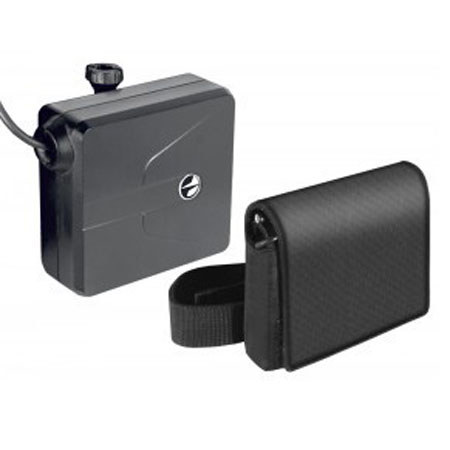

The Pulsar rechargeable Li-Pol Battery Packs EPS3 and EPS5 are designed to power Pulsar and Yukon digital devices, thermal imagers, night vision riflescopes. Battery Packs can be used with such devices as Digisight N550, Recon, Ranger 5x42 and other equipment outfitted with an external power supply jack.
The EPS3 has a capacity of 2.4 Ah, is equipped with a mount to be affixed to a Weaver rail of a device. The 5 Ah EPS5 is supplied with a one meter long extension cable, which allows it to be stored in any suitable place, in a pocket, for example. The use of Battery Packs significantly - up to 20 hours - increases self-contained operation of external equipment. Thanks to the supplied connector for devices with car lighter adapter, Battery Packs are suitable to power various external devices like GPS navigator, FM modulator, mini TV set, cell phone etc.
|Rated voltage||12 V|
|Charging voltage||12.6 V|
|Discharge voltage||8.9 V|
|Full charge time||4 hrs|
|Full discharge time (I=250 mA)||20 hrs|
|Operating discharge current, A||0.2xC|
|Max. discharge current||0.5xC A|
|Charge temperature range||0 deg.C -+45 deg.C / 32 deg.F -+113 deg.F (RH 60±5%)|
|Operating temperature||-20 deg.C -+60 deg.C / -4 deg.F -+140 deg.F (RH 60±5%)|
|Mains voltage range||110 - 220 V|
|Degree of protection||IPX3|
|Storage temperature||22m Ohm|
|Dimensions||106 x 75 x 20 mm / 4.2 x 2.9 x 0.8 inches|
|Weight||0.35 kg / 0.77 lbs|
