Planar PLL1920M 19" SXGA LCD Monitor, 1280x1024, 1000:1 Contrast Ratio, 5 ms Response Time, 250 cd/m2 Brightness, VGA and Composite Video Inputs

SKU: PLNR9975956 MFR: 997-5956
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

Protect your investment

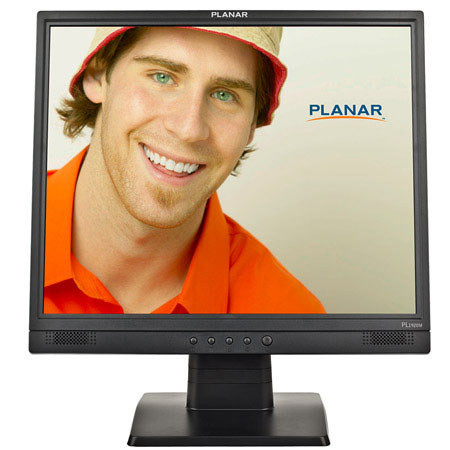

About the Planar PLL1920M

The Planar PLL1920M LED LCD monitor features two sets of BNC input/output, one VGA input and integrated speakers that makes it ideal for security, surveillance, gaming or other video applications. The Planar PLL1920M has a thin professional design, internal power supply, high contrast ratio and fast response time which enables the Planar PLL1920M to keep pace with fast-action video.

Planar PLL1920M Includes

  • Planar PLL1920M 19" SXGA LCD Monitor
  • Power Cable
  • VGA Cable (15 pin)
  • User's Guide -BNC to RCA Adaptor
  • Planar Warranty

Planar PLL1920M Features

  • 19" LED LCD monitor with 1280 x 1024 resolution
  • VGA, two sets of BNC input and output and audio input
  • Integrated speakers
  • Multi-Mount Ready with internal power supply
  • 100mm VESA on back of the monitor for easy wall or arm mounting

Planar PLL1920M Specifications

Viewable Size 19" diagonal (11.97" x 8.98")
Aspect Ratio 5:4
Contrast Ratio (typ) 1000:1
Viewing Angle (typ) 170deg. Horizontal and 160deg. Vertical
Response Time (typ) 5 ms
Brightness (Typical) 250 cd/m2
Display Type Edge-Lit LED LCD
Display Resolution 1280 x 1024 SXGA
Tilt Range -5deg. to +20deg.
Palette 16.7 million colors
Pixel Pitch 0.294 mm
Refresh Rate 75 Hz max
Panel Depth 2.77" / 7.03 cm
Video Inputs VGA and Composite Video (BNC x 2)
External Connections D-Sub 15 pin, 2 x BNC in, 2 x BNC out, Audio in R/L
Audio Output 1w x 2
Compatibility PC and Mac (adapter may be required for Mac)
Power Supply Internal
Power Consumption (max) 25W Typical, (0.5W standby)
Power Requirements AC 100/240 VAC
VESA Compatible/Location Built-in 100 mm VESA, back
Product Approvals FCC-B, cUL, UL, CE
Dimensions (W x H x D) With Stand: 16.02 x 16.98 x 7.89" / 40.69 x 43.12 x 20.04 cm
Without Stand: 16.01 x 14.15 x 2.77" / 40.66 x 35.94 x 7.03 cm
Weight With Stand: 10.08 lbs / 4.57 kg
Without Base & Stand: 7.5 lbs / 3.40 kg
