Planar

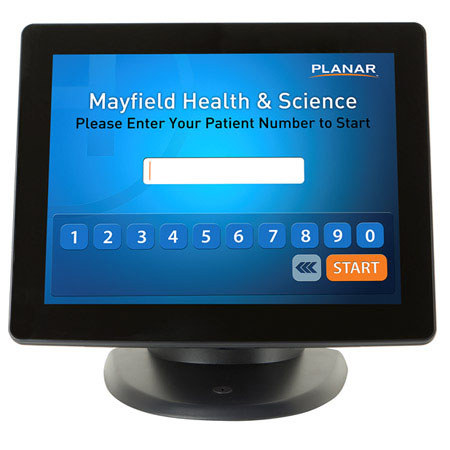

Planar PT1985P 19" Dual-Touch LCD Monitor, 1280x1024 Resolution, 800:1 Contrast Ratio, 225 cd/m2 Brightness with Touch, 5ms Response Time, USB

SKU: PLNR9976315 MFR: 997-6315
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$769.00
Free Shipping
Qty:
Add to Wishlist

Protect your investment

About the Planar PT1985P

The Planar PT1985P 19" Dual-Touch LCD Monitor is a 19" zero bezel, dual-touch LCD monitor that requires no drivers for operation. The all glass front surface of the Planar PT1985P is perfect for use in retail, hospitality, healthcare and kiosk applications which need gesturing support - users can quickly scroll through files, enter information in predefined screens, or flick through and resize pictures. Easily integrated with a variety of point-of-sale (POS), thin client or PC systems, the touch LCD features a projected capacitive touch screen with USB interface, analog/DVI-D video inputs, an internal power supply, speakers and a "designed for touch" rugged enclosure. No drivers are needed for basic touch screen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions.

The touch screen monitor comes with a deskstand, but is also compatible with other mounting options using the 100mm VESA standard hole pattern on the back of the monitor. Planar has nearly 30 years of experience delivering dependable specialty display solutions.

Planar PT1985P Includes

  • Planar PT1985P 19" Dual-Touch LCD Monitor
  • Power Cord
  • VGA Cable
  • DVI-D Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • Driver CD
  • User's Guide
  • Quick Start Guide
  • Planar 3 Year Limited Warranty

Planar PT1985P Features

  • 19" size touch screen monitor with 1280 x 1024 resolution
  • Durable projected capacitive touch screen monitor
  • Zero bezel all glass front surface touch screen
  • Solid, stable base with -5deg. to 90deg. tilt range
  • Compatible with mounting options that use 100mm VESA standard

Planar PT1985P Specifications

Viewable Size 19" diagonal (14.81" horizontal x 11.85" vertical)
Touchscreen Type Projected Capacitive
Number of Touch Points 2
Touchscreen Interface USB
Contrast Ratio (typ) 800:1
Viewing Angle (typ) 160deg. Horizontal and 160deg. Vertical
Response Time (typ) 5 ms
Brightness (w/touchscreen) 225 cd/m2
Brightness (w/o touchscreen) 250 cd/m2
Display Type LCD Active Matrix Flat Panel Display (TFT)
Display Resolution 1280 X 1024
Tilt Range -5deg. to 90deg.
Pixel Pitch 0.294 mm
Refresh Rate 31 to 80 Hz
Video Inputs Analog, DVI-D
Audio Output 2 speakers, 1W/channel
Compatibility Windows 7, Vista, XP, 2000, XP Embedded, Linux, Apple Mac OS, HID Compliant - no drivers needed for basic touchscreen operation
External Connections D-sub 15-pin, DVI-D, Type B socket USB, Stereo Jack - 3mm,AC Power-in, DC power connector
Power Supply Internal
Power Requirements AC100-240 VAC, 50-60 Hz
Power Consumption (max) 28W (3W sleep, 1W off)
Operating Temperature 0deg. to +40deg. C
VESA Compatible/Location Built-in 100mm VESA, back
Product Approvals UL/c-UL, FCC-Class B, CE, RoHS
Dimensions 17.3 x 16.1 x 10.5" (439.4 x 408.9 x 266.7mm)
Without Stand: 17.2 x 14.6 x 2.9" (436.8 x 370.8 x 73.6m)
Weight 19.4 lbs (8.8 kg)
Without Stand: 13.9 lbs (6.3 kg)
