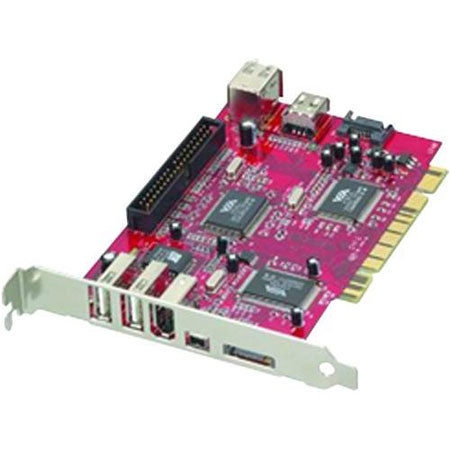

PPA International 2 Port SATA RAID + USB 2.0 + 1394 PCI Combo Card for Windows.

PPA International
SKU: PPA1325 MFR: 1325
Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About PPA International

PPA Slot-Saver Technology consolidates multiple standards into one compact controller. Offering high-performance, cost effective reliability to accommodate all storage peripherals, the combo add on card integrates USB 2.0, FireWire and Serial ATA RAID engineering for maximum flexibility. It support RAID 0 and 1, as well as USB 2.0 and FireWire.

PPA International Features

  • Supports two independent Serial ATA channels
  • Supports non-RAID, RAID 0 and RAID 1 functions
  • High-speed SATA or SATA RAID function
  • SATA 1.0 compliant
  • Independent 256-byte FIFO per SATA channel
  • Supports spread spectrum
  • SATA to PCI interrupt masking
  • Watchdog timer for fault resiliency
  • USB revision 1.0a open host controller interface compliant
  • USB revision 2.0 (data rate 1.5/12/480 Mbp/s) compliant
  • USB revision 0.95 enhanced host controller interface compliant
  • 4 USB 2.0 ports (two external + two internal)
  • Tri-level speed support across all USB ports
  • Compliant with IEEE 1394 open host controller release 1.1
  • Three 1394 ports at 100/200/400 Mbp/s
  • Built-in FIFO for isochronous/asynchronous transmission at 2048 bytes and 3072 bytes reception
  • 32bit CRC generation and checking for receive-transmit packets
  • Three FireWire ports (2 internal and 1 external)

PPA International Specifications

System Requirements
IBM or compatible system with a PII 233MHz or above
One available PCI slot
Windows 2000 / XP / Vista
16MB RAM (24MB recommended)
