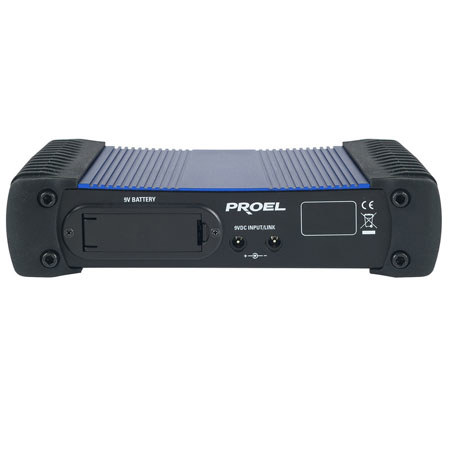

Proel DB1A Single Channel Active DI Box, 10 Hz to 100 kHz Frequency Response

SKU: PRDB1A MFR: DB1A
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$137.00 List Price

Our Price

$99.00
Free Shipping
Qty:

Add to Wishlist

About the Proel DB1A

The Proel DB1A single-channel, top-of-the-range active DI BOX has been designed to fit into the most demanding setups and applications with an outstanding performance. It includes an MU-METAL core transformer able to reduce phase and harmonic distortion to a minimum, with noticeable improvement of the linear phase even on very long cables.

The audio integrity is guaranteed by low-noise, low-consumption IC for balancing the signal, able to handle very low-impedance loads. The input section features JACK and XLR connectors with link possibility and a PAD of up to 30 dB that permits very high-level signal inputs to be used.

Proel DB1A Specifications

System Type 1 channel active DI
Input Impedance 1M Ohm (pad at 0 dB)
47k Ohm (pad at -10/-20 dB)
44k Ohm (pad at -30 dB)
Max Input Level +5 dBu (pad at 0 dB)
+15 dBu (pad at -10 dB)
+25 dBu (pad at -20 dB)
+35 dBu (pad at -30 dB)
Connectors Two Parallel 1/4" jack connectors and one parallel XLR connector (unbalanced)
Jack: Tip Hot / Sleeve Ground
XLR female: Pin 2 Hot / Pin1 & 3 Ground
Output Transformer Balanced (fully isolated)
Max. Output Level into 600 Ohms or greater
+3 dBu (for 0.1% THD at 50 Hz)
+5 dBu (for 0.1% THD at 1k Hz)
Connector XLR male: Pin 2 Hot / Pin 3 Cold / Pin1 Ground
Insertion loss < 1 dB
CMR > 60 dB
Phase distortion +14deg. at 20 Hz, -6deg. at 20kHz
Distortion (THD) < 0.007 %
Noise < -105 dBu unweighted
Frequency Response 10 Hz to 100 kHz, +0dB/-1 dB
Indicators On, signal, clip
Phantom Power +24 volts DC to +48 volts DC
External AC/DC adaptor +9 volts DC
Standalone/Standby 9 volt PP3 type, battery preferably alkaline
Current consumption less than 8 mA
Dimensions (W x H x D) 215 x 50 x 125 mm / 9.65 x 1.97 x 4.92 inches
Weight 1 Kg / 2.20 lbs
