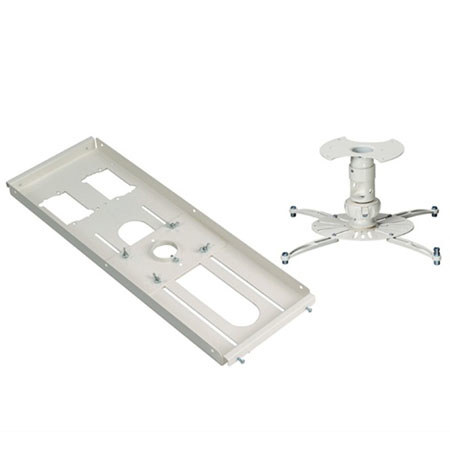

Premier Mounts SPI-FCTAW Projector Ceiling Mount Bundle - SPI-PRO with PP-FCTA, White

Special Order Item - This item typically ships within 2-5 Days. Delivery is subject to availability.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

About this item

The Premier Mounts SPI-FCTAW Bundle (White) allows you to mount your projector under 45lbs from the ceiling. Featuring a white powder coat finish, it blends effortlessly with any decor in the home, office or classroom. Take advantage of its adjustment options, as it includes pitch, (+/-6deg.) roll (+/-6deg.) and yaw (360deg.). Universal mounting legs with leveling barrels. Integrated Lock-It security hardware helps keep your projector safe, making it difficult for theft to occur.

Installation is made as easy as possible. The 2-step mounting allows separate for ceiling and projector installations, which then twist and lock together. The mount can be installed with 1.5" NPT pipe, ceiling studs or solid surfaces to give you flexibility. The included hidden false ceiling adapter allows for a complete mounting and comes with 100' of 14-guage wire, 4 turnbuckles and a split-flange escutcheon ring to cover the pipe access ceiling hole.

What's Included With This Item

  • Premier Mounts Universal Projector Ceiling Mount (Up to 45 lbs)
  • PP-FCTA Hidden T-bar Frame Adapter
  • Projector Plate
  • Ceiling Plate
  • Twist Lock Collar
  • 4 x Mounting Legs
  • Close Nipple
  • M3 Security Allen Key
  • M5 Security Allen Key
  • 2 x No.14x2" Wood Screws
  • 4 x M2.5x10mm Security Screws
  • 4 x M2.5x12mm Security Screws
  • 4 x M3 x 16mm Security Screws
  • Premier Mounts Warranty (See Specs Section for More Item Includes)

Key Features

  • Multiple Adjustment Options: Provides smooth roll, (+/-6deg.) pitch, (+/-6deg.) and yaw (360deg.) adjustments
  • Locking Mechanism: Four-tumbler locking system and torsion-spring lock the mount securely into a final working position
  • Quick Release: Easy release position allows projector removal for servicing your projector
  • Security: Lock-It security hardware protects against theft of your projector
  • Fine-Tuning Adjustments: Leveling barrels in the universal mounting legs offer additional fine-tuning options
  • Complete Mounting Solution: Hidden false ceiling adapter comes with 100' of 14-gauge wire, 4 turnbuckles and an escutcheon ring for aethetic value
  • Flexible Mounting Options: Mount can be installed with 1.5" NPT pipe, ceiling studs or solid surfaces

Technical Specs

Item Includes 4 x M4 x 10mm Security Screws
4 x M4 x 12mm Security Screw
4 x M5 x 12mm Security Screws
8 x M6 x 12mm Security Screws
1/4-20 x 5/16 Security Screw
10 x M3 Flat Washers
Lock-It Security Barrel
Depth From Mounting Source 7.49" / 190.24mm
Pitch +/- 6deg.
Roll +/- 6deg.
Yaw 360deg.
Weight Capacity 45lbs (20.4 kg)
Dimensions 17.75x14.75x7.49" / 45.1x37.46x19.02cm
Weight 14lbs / 6.35kg
