Premier Mounts

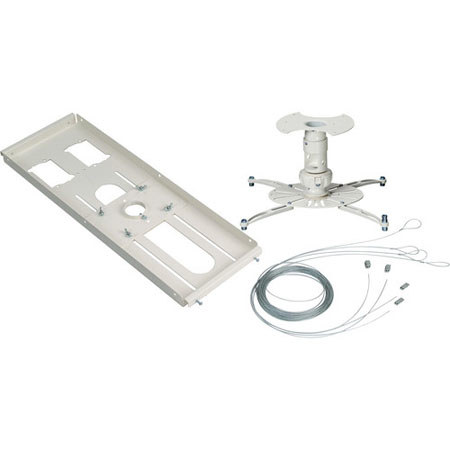

Premier Mounts SPI-FCTAW-QL Projector Ceiling Mount Bundle - SPI-PRO with PP-FCTA-QL and Quick Lock Cable, White

SKU: PRMSPIFCTAWQ MFR: SPI-FCTAW-QL
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$178.95
Qty:

Add to Wishlist

About this item

The Premier Mounts SPI-FCTAW-QL Bundle (White) allows you to mount your projector under 45lbs from the ceiling. Featuring a white powder coat finish, it blends effortlessly with any decor in the home, office or classroom. Take advantage of its adjustment options, as it includes pitch, (+/-6deg.) roll (+/-6deg.) and yaw (360deg.). Universal mounting legs with leveling barrels. Integrated Lock-It security hardware helps keep your projector safe, making it difficult for theft to occur.

Installation is made as easy as possible. The 2-step mounting allows separate for ceiling and projector installations, which then twist and lock together. The mount can be installed with 1.5" NPT pipe, ceiling studs or solid surfaces to give you flexibility. The included false ceiling plate sits hidden above ceiling tile and includes 100 feet of braided cables with looped ends and quick-locks as well as 2 hole cutting escutcheon rings.

What's Included With This Item

  • Premier Mounts Universal Projector Ceiling Mount (Up to 45 lbs)
  • PP-FCTA-QL Hidden False Ceiling Adapter with Quick Lock Cable
  • Projector Plate
  • Ceiling Plate
  • Twist Lock Collar
  • 4 x Mounting Legs
  • Close Nipple
  • M3 Security Allen Key
  • M5 Security Allen Key
  • 2 x No.14x2" Wood Screws
  • 4 x M2.5x10mm Security Screws
  • 4 x M2.5x12mm Security Screws
  • 4 x M3x16mm Security Screws
  • Premier Mounts Warranty (See Specs Section for More Item Includes)

Key Features

  • Multiple Adjustment Options: Provides smooth roll, (+/-6deg.) pitch, (+/-6deg.) and yaw (360deg.) adjustments
  • Locking Mechanism: Four-tumbler locking system and torsion-spring lock the mount securely into a final working position
  • Quick Release: Easy release position allows projector removal for servicing your projector
  • Security: Lock-It security hardware protects against theft of your projector
  • Fine-Tuning Adjustments: Leveling barrels in the universal mounting legs offer additional fine-tuning options
  • Complete Mounting Solution: Hidden false ceiling adapter comes with 100' of 14-gauge wire, 4 turnbuckles and an escutcheon ring for aethetic value
  • Flexible Mounting Options: Mount can be installed with 1.5" NPT pipe, ceiling studs or solid surfaces

Technical Specs

Item Includes 4 x M4 x 10mm Security Screws
4 x M4 x 12mm Security Screw
4 x M5 x 12mm Security Screws
8 x M6 x 12mm Security Screws
1/4-20 x 5/16 Security Screw
10 x M3 Flat Washers
Lock-It Security Barrel
Depth From Mounting Source 7.49" / 190.24mm
Pitch +/- 6deg.
Roll +/- 6deg.
Yaw 360deg.
Weight Capacity 45lbs (20.4 kg)
Dimensions 17.75x14.75x7.49" / 45.1x37.46x19.02cm
Weight 15lbs / 6.80kg
