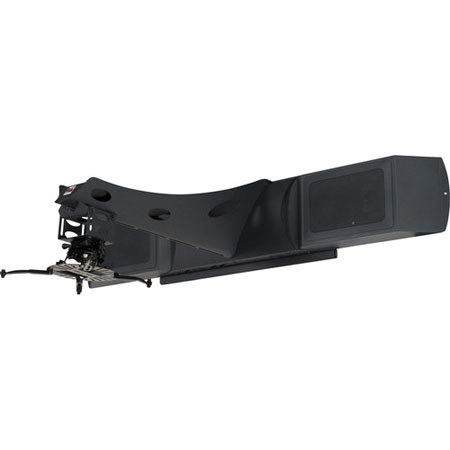

Premier Mounts UNI-FTPB-AUD Short Throw Projector Wall Mount with FTP and Audio, Black

Premier Mounts
SKU: PRMUNIFTPBA MFR: UNI-FTPB-AUD
Free Shipping

See all shipping options

Special Order Item - This item typically ships within 2-5 Days. Delivery is subject to availability. learn more

Our Price

$577.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Premier Mounts

The Premier Mounts UNI-FTPB-AUD Short Throw Projector Wall Mount with FTP and Audio (Black) allows you to mount projectors weighing up to 50lbs and consists of a powerful stereo audio system and the CPA-50 Compact Power Amplifier. You can attach a PDS or SpiroLock Projector to the Short-throw Projector Mount. Offering enhanced flexibility, the Short-Throw Wall Mount provides an extension range of 7 to 27".

With an optional arm, it can be extended up to a maximum length of 67" (170.1 cm). With patent-pending GearBox for PC, Mac mini, or control modules and advanced patent-pending mechanism for FTP projector mount, the Short-Throw Projector Wall Mount with FTP allows smooth finger-tip alignment for the projector. In addition, the patent-pending GearBox allows you to store the CPA-50 amplifier, microphone receivers and network adaptors. The Short Throw Projector Mount enables cable routing by efficient management of signal and power cables via the arm and the GearBox.

Offering fine-tune controls, the Fine-Tune Projector Mount allows roll, pitch and yaw adjustments. You can also mount the Fine-Tune Projector Mount to 1/2" NPT threaded pipe or a single or dual ceiling studs at 16" (40.6 cm), 18" (45.7 cm), or 24" (60.9 cm) spacing, by using a socket wrench and socket wrench extension.

With Lock-It security hardware and a padlock or steel-cable locking system, the Fine-Tune Projector Mount allows secure mounting of the projector. The mounting legs, mounting slots leveling barrels allows various projector mount-point configurations. The projector direction arrows inscribed on the Fine-Tune Projector Mount ensure safe and efficient installation and the quick set base allows easy connecting or disconnecting of the projector.

Designed to work with UNI series of mounts and GB-Audio, the CPA-50 Compact Power Amplifier powers the speakers and provides an output of 50 W of which each RMS channel consumes 25W. The power drops to 0.8W when standby mode activates within a period of 20 minutes. The rack-mountable CPA-50 Compact Power Amplifier also offers volume control, which includes 3 stereo line-level inputs with 1:1:1 signal mix ratio, 1 microphone input and an external control. In addition, the CPA-50 Amplifier supports a 2-way speaker system that includes a 5.2" (133.3 mm) woofer and a 1" (25.4 mm) directional tweeter.

Premier Mounts Features

  • Load capacity - up to 50 lb (22.7 kg)
  • Consists of a powerful stereo audio system and a Compact Power Amplifier (CPA-50)
  • Attach a PDS or SpiroLock Projector
  • Offers flexibility with an extension range of 7 to 27" (17.7 to 68.5 cm)
  • Allows optional arm extension up to a maximum length of 67" (170.1 cm)
  • Patent-pending GearBox for PC, Mac mini, or control modules
  • Advanced patent-pending mechanism for FTP projector mount
  • Allows smooth finger-tip alignment for the projector
  • Patent-pending GearBox allows you to store the CPA-50 amplifier, microphone receivers and network adaptors
  • Efficient cable management
  • Roll, pitch and yaw adjustments
  • 1/2" NPT threaded pipe
  • Mounts to a single or dual studs at 16" (40.6 cm), 18" (45.7 cm), or 24" (60.9 cm) spacing, by using a socket wrench and socket wrench extension
  • Lock-it security hardware, padlock or steel-cable locking
  • Mounting legs, mounting slots leveling barrels allows various projector mount-point configurations
  • Projector direction arrows for safe and efficient installation
  • Quick set base allows easy connecting or disconnecting of the projector
  • Designed to work with UNI series of mounts and GB-Audio, the CPA-50 Compact Power Amplifier
  • Provides an output of 50 W of which per RMS channel takes 25 W
  • Standby mode activates within a period of 20 minutes and the power drops to 0.8 W
  • Offers volume control, which includes 3 stereo line-level inputs with 1:1:1 signal mix ratio, 1 microphone input and an external control
  • Rack mountable power amplifier
  • Supports 2-way speaker system
  • Includes 5.2" (133.3 mm) woofer and 1" (25.4 mm) directional tweeter

Premier Mounts Specifications

Weight Capacity
50lbs / 22.67kg
Extension
7-27" / 17.78-68.58cm
Pitch
+5/-15 degrees
Roll
+/-5 degrees
Yaw
+/-20 degrees
Mounting Patterns
Up to 16.43" diameter
Dimensions (HxW)
10.69x53.97" / 27.15x137.08cm
