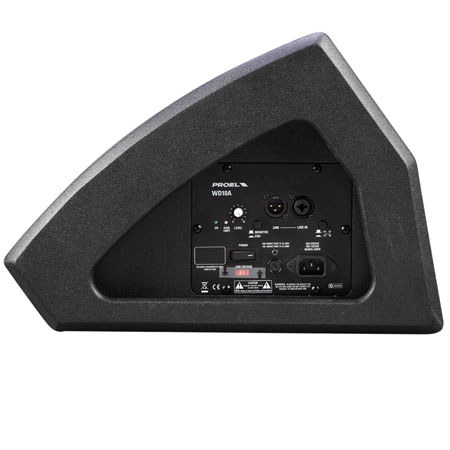

Proel 10" Active Coaxial Stage Monitor, 200W Class D+ 50W Class AB, 60Hz-20kHz Frequency Response
Your card will only be charged once item ships.
The Proel 10" Wedge Series Active Coaxial Stage Monitor (200 W Class D + 50 W Class AB) is an active stage monitor designed to offer not only to professional musicians and rental companies, but also to amateur musicians and nonprofessional users. The coaxial transducers, designed under Proel specifications, represent the best choice for stage monitors, not only because they fit into more compact cabinets, but also for the fact that they provide a perfect alignment in the emission of high and low frequencies and a controlled directivity for a perfect listening from any position.
The lightweight Class D amplifier modules with SMPS, coupled to a sophisticated analog processing, provide an impressive sound pressure level, with an extremely detailed response, particularly in the vocal range and a remarkable resistance to feedback. The two tailored EQ presets are available for the use of the speaker not only for stage monitoring (monitor), but also as a main sound system (FOH). The low-profile, stylish and unobtrusive cabinet, finished with scratch-resistant polyurethane painting, fits perfectly on any stage. It also offers a high performance monitoring on small stages or venues with a limited space and it is the ideal solution for speech, vocals and keyboards.
|System type||2-way coaxial vented stage monitor|
|Low Frequency Device||10" woofer with 2"VC|
|High Frequency Device||1" neo compression driver with 1"VC|
|Frequency response||60 Hz - 20 kHz|
|Max SPL at 1mt (peak)||123 dB|
|Amplifier Continuous Power||HF: 50 W CLASS AB
LF: 200W CLASS D with SMPS
|Input Impedance||30 kohm balanced
15 kohm unbalanced
|Input Sensitivity||0 dBu|
|Controls||Level, Preset selector (Monitor, FOH), GND lift|
|Connectors||Input: Combo (XLR-F/Jack) LINK: XLR-M|
|Power Supply||230 VAC or 120 VAC - 50/60 Hz|
|Construction||Plywood with black anti-scratch polyurethane paint|
|Pole Adapter||1 x side|
|Handles||2 x sides|
|Monitor taper||36 deg.|
|Dimensions (WxHxD)||480x300x420mm / 18.89x11.81x16.53"|
|Weight||11kg / 24.25lbs|
