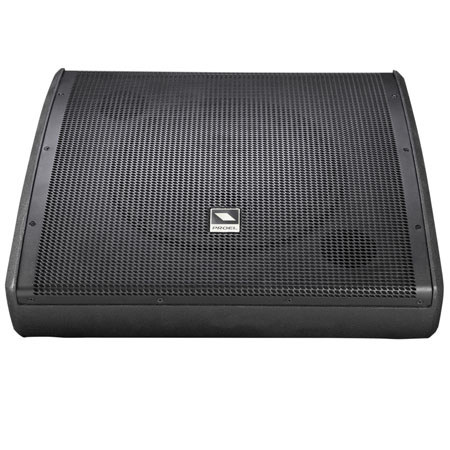

Proel 12" Active Coaxial Stage Monitor, 300W Class D+50W Class AB, 50Hz-20kHz Frequency Response

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$560.00 List Price

Our Price

$399.00 $16 per week
Free Expedited Shipping
Add to Wishlist

Protect your investment

About the Proel 12"" Active Coaxial

The Proel 12" Wedge Series Active Coaxial Stage Monitor (300 W Class D + 50 W Class AB) is an active stage monitor designed to offer not only to professional musicians and rental companies, but also to amateur musicians and nonprofessional users. The coaxial transducers, designed under Proel specifications, represent the best choice for stage monitors, not only because they fit into more compact cabinets, but also for the fact that they provide a perfect alignment in the emission of high and low frequencies and a controlled directivity for a perfect listening from any position.

The lightweight Class D amplifier modules with SMPS, coupled to a sophisticated analog processing, provide an impressive sound pressure level, with an extremely detailed response, particularly in the vocal range and a remarkable resistance to feedback. The two tailored EQ presets are available for the use of the speaker not only for stage monitoring (monitor), but also as a main sound system (FOH). The low-profile, stylish and unobtrusive cabinet, finished with scratch-resistant polyurethane painting, fits perfectly on any stage.

Proel 12"" Active Coaxial Features

  • Lightweight plywood cabinet with black antiscratch polyurethane paint
  • Reinforced metal grille
  • Recessed connection panel for added protection
  • 2 recessed handles for easy transport
  • Pole adapter
  • 300 W class D + 50 W class AB - with SMPS

Proel 12"" Active Coaxial Specifications

System type 2-way coaxial vented stage monitor
Low Frequency Device 12" woofer with 2.5"VC
High Frequency Device 1" compression driver with 1.35"VC
Angular Coverage 80deg.
Frequency response 50 Hz - 20 kHz
Max SPL at 1mt (peak) 124 dB
Amplifier Continuous Power HF: 50 W CLASS AB
LF: 300W CLASS D with SMPS
Input Impedance 30 kohm balanced
15 kohm unbalanced
Input Sensitivity 0 dBu
Controls Level, Preset selector (Monitor, FOH), GND lift
Connectors Input: Combo (XLR-F/Jack) LINK: XLR-M
Power Supply 230 VAC or 120 VAC - 50/60 Hz
Maximum Consumption 445W
Rated Consumption 235W
Construction Plywood with black anti-scratch polyurethane paint
Pole Adapter 1 x side
Handles 2 x sides
Monitor taper 36 deg.
Dimensions (WxHxD) 510x340x500mm / 20x13.39x19.69"
Weight 15kg / 33lbs
