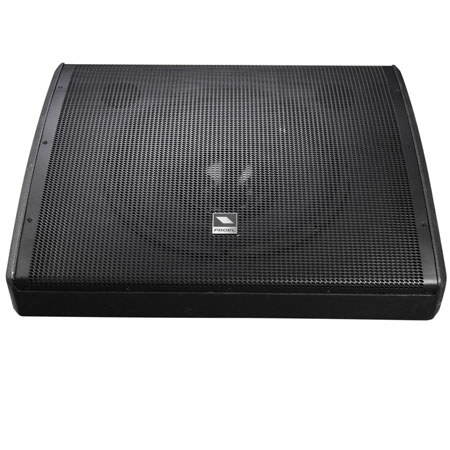

Proel 15" Active Coaxial Stage Monitor, 400W Class D+50W Class AB, 45Hz-20kHz Frequency Response

Proel
Proel 15 Proel 15 Proel 15

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95
29% Off

Our Price

$449.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Proel 15"" Active Coaxial

The Proel 15" Wedge Series Active Coaxial Stage Monitor (200 W Class D + 50 W Class AB) is an active stage monitor designed to offer not only to professional musicians and rental companies, but also to amateur musicians and nonprofessional users. The coaxial transducers, designed under Proel specifications, represent the best choice for stage monitors, not only because they fit into more compact cabinets, but also for the fact that they provide a perfect alignment in the emission of high and low frequencies and a controlled directivity for a perfect listening from any position.

The lightweight Class D amplifier modules with SMPS, coupled to a sophisticated analog processing, provide an impressive sound pressure level, with an extremely detailed response, particularly in the vocal range and a remarkable resistance to feedback. The two tailored EQ presets are available for the use of the speaker not only for stage monitoring (monitor), but also as a main sound system (FOH). The low-profile, stylish and unobtrusive cabinet, finished with scratch-resistant polyurethane painting, fits perfectly on any stage.

Proel 15"" Active Coaxial Features

  • Lightweight plywood cabinet with black antiscratch polyurethane paint
  • Reinforced metal grille
  • Recessed connection panel for added protection
  • 2 recessed handles for easy transport
  • Pole adapter
  • 400 W class D + 50 W class AB - with SMPS

Proel 15"" Active Coaxial Specifications

System type
2-way coaxial vented stage monitor
Low Frequency Device
15" woofer with 3"VC
High Frequency Device
1" compression driver with 1.35"VC
Angular Coverage
60 deg.
Frequency response
45 Hz - 20 kHz
Max SPL at 1mt (peak)
126 dB
Amplifier Continuous Power
HF: 50 W CLASS AB
LF: 400W CLASS D with SMPS
Input Impedance
30 kohm balanced
15 kohm unbalanced
Input Sensitivity
0 dBu
Controls
Level, Preset selector (Monitor, FOH), GND lift
Connectors
Input: Combo (XLR-F/Jack) LINK: XLR-M
Power Supply
230 VAC or 120 VAC - 50/60 Hz
Maximum Consumption
575W
Rated Consumption
300W
Construction
Plywood with black anti-scratch polyurethane paint
Pole Adapter
1 x side
Handles
2 x sides
Monitor taper
36 deg.
Dimensions (WxHxD)
610x365x545mm / 24x14.37x21.45"
Weight
19.5kg / 43kg
