About PreSonus ADL-600

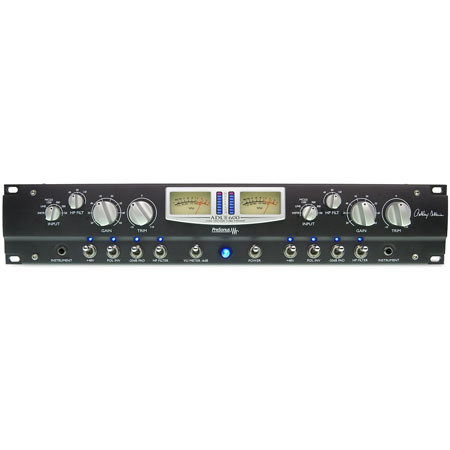

The ADL 600 from PreSonus is a two-channel, high voltage tube microphone preamplifier designed by Anthony DeMaria. The unit is a Class A discrete design with three military-grade vacuum tubes per channel, operating at voltages of +/-300V power rails for maximum tube tonality and headroom. The unit was designed for the ultimate in sonic performance, ease of use and input flexibility.

The input selector allows for selection between Hi-Z instrument input, line input and four different microphone impedances. A high pass filter is a rotary switch with three filter settings for passively controlling room rumble and low frequency noise. The input gain attenuator is a military-grade rotary switch delivering 5dB step increments and a total preamplifier gain of over 72dB, sufficient for even the most demanding microphone application.

The output stage is controlled by a fully variable conductive plastic attenuator delivering +/-10dB of fine tune trim adjustment. The ADL 600 includes 48V phantom power and a -20dB pad per channel. Also included are fast-acting eight-segment LED meters for the accurate detection of fast transients and peaks, as well as large high quality analog VU meters for metering output level. There are no op-amps or integrated circuits (IC's) in the signal path to ensure the purest sound possible. The dual transformer design also ensures ultra low noise operation with maximum common mode rejection.

PreSonus ADL-600 Features

  • U 19" rack-mountable, rugged steel chassis
  • Internal power supply with standard IEC connector
  • Chassis ground link connectors (lift chassis ground)
  • Dual channel high-voltage, class A dual transformer designed preamplifier with over 73dB of gain
  • Microphone, instrument and line inputs
  • Selectable microphone input impedance
  • Switched gain and variable fine trim controls
  • Variable high pass filter, 48V phantom power, -20dB pad and polarity invert per channel
  • Analog VU and fast-acting LED metering

PreSonus ADL-600 Specifications

Number of Channels
2
Inputs
2 x XLR Microphone
2 x XLR Line
Output
2 x XLR
Phantom Power
Yes, individually selectable
Multi Function
No
Gain Range
Mic: 18dB to 72dB
Line: -12dB to 40dB
Instrument: -5dB to 42dB
Maximum Output Level
+23dBu, at 0.5%THD+N
Frequency Response
10Hz to 45KHz, +/-1dB
Noise
Floor: -95dBu, A-weighted
EIN: -125dBu, A-weighted
Specialties
Selectable input impedance
Dimensions (W x D x H)
19" x 17" x 3.5" / 48.26 x 43.18 x 43.18 cm
Weight
28 lbs/ 12.70 kg
