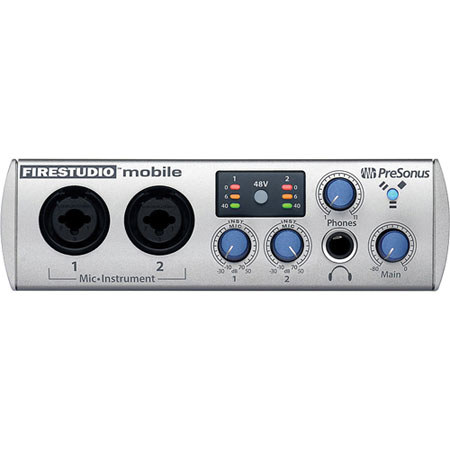

PreSonus FireStudio Mobile 10x6 FireWire Recording System, 24-bit, 96 kHz

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$249.95 $10 per week
Free Overnight Shipping
Add to Wishlist In Stock

About this item

Finally, a new-generation, studio-quality FireWire interface that you can use anywhere! The PreSonus FireStudio Mobile combines the superior analog-circuit design and advanced platform technology of acclaimed FireStudio rack-mount interfaces with the ability to run on bus power in field applications. Now you can have enhanced audio performance for music recording and creation anywhere you can lug your laptop!

The FireStudio Mobile is a ten-input, six-output professional recording system that combines two PreSonus XMAX Class A microphone preamplifiers; six line-level, analog input channels; S/PDIF digital input and output; MIDI I/O; and headphone monitoring with separate gain control. The FireStudio Mobile beats any and all competition when it comes to flexibility and input count. You can record a whole band with the FireStudio Mobile. The FireStudio Mobile is bundled with PreSonus Studio One Artist, groundbreaking music creation program, and over 4 GB of virtual instruments, plug-ins, loops, and samples to get you started making music immediately.

Here's a dirty little secret: bus-powered mobile interfaces from other manufacturers deliver much less than the full 48 volts of phantom power that is specified by microphone manufacturers. This means even the finest condenser microphone can't work at optimal internal gain levels, potentially compromising sound quality even before the signal gets to the mic preamp!

PreSonus president Jim Odom and his team of engineers went the extra mile and created an "internal switching power plant" that lets the FireStudio Mobile convert computer bus power into a full 48 volts of phantom power, as well delivering 30 volts to power the superb mic preamps you'll read about next.

What's Included With This Item

  • PreSonus 10 x 6 FireWire Recording System
  • 6-Pin to 6-Pin 6' FireWire Cable
  • AC Power Supply
  • DB-9 Breakout MIDI & S/PDIF I/O Cable
  • Software Installation Discs
  • Studio One Artist Recording Software (Mac & Windows)
  • PreSonus Warranty

Key Features

  • 8 analog input channels, including mic, line, and instrument inputs
  • 2 front-panel mic/instrument inputs with high-headroom Class A XMAX mic preamplifiers
  • 6 line-level inputs
  • Individual channel-trim controls with -30 dBV to +50 dBV line/-10 to +70 dBu mic gain range
  • 48V phantom power for condenser microphones
  • Headphone jack with level control
  • Main-output gain control
  • 3-segment, fast-acting LED input metering
  • Power/Sync LED (indicates unit is synced to word clock)
  • Daisy-chain multiple FireStudio-family products to create a large, custom system
  • Studio One Artist digital audio workstation software included
  • 1/3U rack-mountable (with optional 3UMR rack-mounting system)
  • Road-rugged construction with shockproof, reinforced metal chassis, sealed rotary controls, military-grade circuit board, chassis-mounted input/output sockets, and full EMI shielding
  • Powered via FireWire bus or included 12 VDC external power supply

Technical Specs

Computer system requirements 1 Windows: Windows 7, Vista, XP (32-bit and 64-bit)
Intel Pentium 4 1.6 GHz processor or AMD Athlon 64 (Turion) (2.5 GHz or faster recommended)
1 GB RAM (2 GB or more recommended)
Computer system requirements 2 Macintosh: Mac OS X 10.5.2 or later (32-bit and 64-bit)
PowerPC G4 1.25 GHz or Intel Core Solo 1.5 GHz processor (2 GHz or faster recommended)
1 GB RAM (2 GB or more recommended)
Computer system requirements 3 Windows and Macintosh Systems: IEEE 1394 FireWire 400 Port
Internet connection recommended
DVD-ROM drive
Internal or external 7200 RPM storage drive highly recommended
Microphone Preamp Frequency Response 20 Hz to 50 kHz (+0, -0.5 dB)
Microphone Preamp Frequency Response 20 Hz to 150 kHz (+0/-3.0 dB)
Microphone Preamp Input Impedance 1.6 k ohms
Microphone Preamp THD + N < 0.008 % (unwtd, 1 kHz at +4 dBu Output, Unity Gain)
Microphone Preamp EIN -130 dBu (unwtd, 55 dB Gain, 150 ohms Input, 20 Hz to 22 kHz)
Microphone Preamp S/N Ratio > 101 dB (Unity Gain, unwtd, Ref = +4 dBu, 20 Hz to 22 kHz)
Common Mode Rejection Ratio > 55 dB (1 kHz, 55 dB Gain)
Microphone Preamp Gain Control Range -10 dB to 70 dB (± 1 dB)
Microphone Preamp Maximum Input level +14 dBu (Unity Gain, 1 kHz at 0.5% THD+N)
Microphone Preamp Phantom Power +48 VDC (± 2 VDC)
Instrument Input Type TS Female Unbalanced
TS Female Unbalanced Impedance 1 Mohms
Main Outputs Type 1/4" TRS Impedance Balanced
1/4" TRS Active Stereo
TRS Impedance Balanced Output Impedance 51ohms
TRS Active Stereo Maximum Output 150 mW/CH at 60ohms Load
TRS Active Stereo Frequency Response 10 Hz - 70 kHz
FireWire (IEEE 1394) Speed 400 Mbps
ADC Dynamic Range (A-wtd, 48 kHz) 118 dB
DAC Dynamic Range (A-wtd, 48 kHz) 118 dB
Bit Depth 24 bits
Reference Level for 0 dBFS +10 dBu
Internal Sample Frequency Selections 44.1, 48, 88.2, 96 kHz
Digital Jitter < 20 ps RMS (20 Hz - 20 kHz)
Digital Jitter Attenuation > 60 dB (1 ns in => 1 ps out)
Bus Power 6-pin FireWire 400 or FireWire 800
Power Supply External Switching Supply (12 VDC/1A)
Input/Output 2 FireWire 400 ports
2 combo XLR/ 1/4" mic/instrument inputs
6 balanced 1/4" line inputs
2 balanced 1/4" main (L/R) line outputs
1 stereo 1/4" headphone output with volume control
S/PDIF in/out
MIDI in/out
Digitalia 24-bit resolution and up to 96 kHz sampling rate
High-definition A/D/A converters (+118 dBu dynamic range)
JetPLL Jitter Elimination Technology (improved stereo imaging and clarity)
Zero-latency monitoring via 10x3 DSP matrix mixer/router
Mac- and Windows-compatible, including Mac OS X 10.6 Snow Leopard and Windows 7
Supports ASIO, Core Audio, Direct Sound (Windows XP), Windows Audio Session API (Windows Vista and Windows 7)
Software Studio One Artist: PreSonus' revolutionary new digital audio workstation, with unlimited track count and 4+ GB of 3rd-party resources.
Universal Control control-panel application for Mac OS X and Windows
Dimensions (W x H x D) 5.5" x 1.75" x 5.5"/139.7 x 44.5 x 139.7 mm
Weight 4.5 lbs/2 kg
