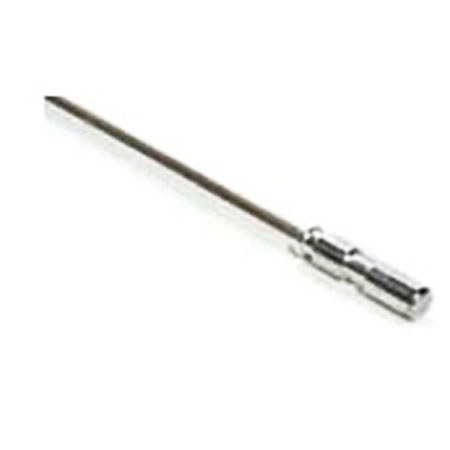

Plume Wand for the Wafer 200 Softbox (Black, Curved)
Your card will only be charged once item ships.
Wafer 200- The largest Wafer Diffusion Bank uses a two part aluminum wand to keep its collapsed storage size only 40" in length. (This one meter length is more or less an industry standard, cf: Manfrotto light stands, Gitzo tripods.) The outer (lower) half section of this two-part wand is black in color and pre-bent. This pre-bent section should remain in the corner pockets of the reflective shell and behind the elastic stay provided. Note that one end has a silver insert to join into the inner (top) silver wand section.
To assemble the Wafer 200, let gravity help you on this big one- begin with a short 4-1/2 foot side "overhead" and insert each of the straight silver sectionsonto the black pre-bent sections already in place inside the Wafer.
Then, with "everything still up in the air", insert these first two wands into the Wafer Ring. Now add the silver section to the two remaining pre-bent sections down at your knees.
Insert the third wand into Ring. Stop to check that first three wands are bending outwards and that each 2-part wand is seated properly into each other and into the Ring.
Complete the fourth wand placement in notched hole(red dot). Disassembly can be accomplished by any of the methods described above, but consider Alternative #2 first.
Note This version is not the complete version, it is black pre-bent part
