On Camera and Slave Flashes
Shoe Mount Flashes

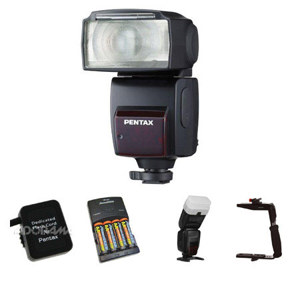

Pentax AF-540FGZ Shoe Mount Zoom Flash, Deluxe Outfit
Pentax

Pentax AF-540FGZ Dedicated Shoe Mount Zoom Flash - Deluxe Outfit - with 4 NiMH Batteries, Charger, Sto-Fen Omni-Bounce, Flashpoint Quick Flip Flash Bracket, Off-Camera TTL Coiled Flash Cord

SKU: PXAF540FGZKB MFR: PXAF540FGZKB
What's Included
What's Included With This Item:
  • Case
    4 AA Nickel Metal Hydride (NiMH) 2900 mAH Rechargeable Batteries with 4-Hour AA & AAA Quick Charger, 110 /220 volt
  • Sto-Fen Omni-Bounce
  • Flashpoint Quick Flip Flash Bracket
  • Off-Camera TTL Coiled Flash Cord
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

$486.69 Regular Price
- $26.34Adorama Kit Discount

Our Price

$460.35
Free shipping
Qty:

Add to Wishlist

This Kit Includes:

Pentax AF-540FGZ Shoe Mount Flash
Pentax AF-540FGZ Shoe Mount Flash
SKU: PXAF540FGZ MFR: 30425
Power2000 4 AA NiMH 2900mAh Batteries/Charger, 110/220v
Power2000 4 AA NiMH 2900mAh Batteries/Charger, 110/220v
SKU: PQXP333 MFR: XP333
Sto-Fen OMMZ40 Omni-Bounce for Metz 40MZ-1I Flashes
Sto-Fen OMMZ40 Omni-Bounce for Metz 40MZ-1I Flashes
SKU: SFOMMZ40 MFR: OMMZ40
Flashpoint Quick Flip Flash Bracket for 35mm
Flashpoint Quick Flip Flash Bracket for 35mm
SKU: FABQFF MFR: FABQFF
Adorama RS0447P Off-Camera TTL Coiled Flash Cord, 3ft
Adorama RS0447P Off-Camera TTL Coiled Flash Cord, 3ft
SKU: FAOCSCPX MFR: RS0447P
OverviewFeaturesTech SpecsAccessories

Pentax AF-540FGZ Includes

  • Case
    4 AA Nickel Metal Hydride (NiMH) 2900 mAH Rechargeable Batteries with 4-Hour AA & AAA Quick Charger, 110 /220 volt
  • Sto-Fen Omni-Bounce
  • Flashpoint Quick Flip Flash Bracket
  • Off-Camera TTL Coiled Flash Cord

Pentax AF-540FGZ Features

  • Flash exposure compensation through a simple control dial
  • High guide number for increased range and versatile flash performance
  • P-TTL mode with preflash allows for more accurate strobe photography
  • Wireless P-TTL flash is available when used with the MZ-S, ZX-L, *ist D Cameras
  • High speed on camera and high speed wireless flash is available in P-TTL modes
  • Standard TTL flash is available when used with Pentax TTL flash enabled camera bodies.
  • Auto and Manual modes for more creative control or use with non-TTL camera bodies
  • LCD display shows the effective range of the flash in P-TTL, TTL and AUTO modes
  • Modeling light feature strobes the flash for one second so the photographer can check for unwanted shadows or highlights
  • Includes an autofocus assist beam for focusing in low light or low contrast situations

Pentax AF-540FGZ Specifications

Type: Hot Shoe Clip-on TTL auto zoom flash unit with serial control
Guide Number: Feet: With ISO 100, Manual: - 177 (85mm) - 164 (70mm) - 148 (50mm) - 128 (35mm) - 115 (28mm) - 105 (24mm) - 69 (20mm*) (* w/wide angle panel)
Zoom Range: 85mm to 24/20mm*
(* w/wide angle panel)
Bounce Capability: Up: -10o, 0o, 30o, 45o, 60o, 75o, 90o
Swivel Capability: Right: 0o, 30o, 60o, 90o, 120o, 150o, 180o
Left: 0o, 30o, 60o, 90o, 135o
Recycle Time: Alkaline (LR6) Approx. 6 sec. Approx. 200 Flashes
Nickel hydroxide (Ni-MH) Approx. 6 sec. Approx. 250 Flashes
Lithium (FR6) Approx. 6 sec. Approx. 350 Flashes
Special Features: Consecutive Discharge: Approx. 2 frames/sec for 50 pictures, at [M 1/64] output (with alkaline LR6 batteries)
Other Color Temperature: Daylight
Lighting Angle Zooming position: 85mm: Vertical Coverage: 23deg, Horizontal: 31deg, - 70mm: V: 26deg H: 36deg - 50mm: V: 34deg H: 46deg - 35mm: V: 45deg H: 60deg - 28mm: V: 53deg H: 70deg - 24mm: V: 60deg H: 78deg - 20mm*: V: 85deg H: 98deg (w/wide angle panel)
AF Spotbeam Red beam emitted under low light or low-contrast conditions
Compatible Film Speed ISO 25 - 1600
Flash Modes P-TTL auto, TTL auto, auto, manual
Flash Exposure Compensation In P-TTL mode -3.0 to +1.0 steps (0.5 step increments)
Flash Amount Setting With wireless slave: [1/1, 2/3, 1 / 2, 1 / 3]
Manual: [1/1, 1 / 2, 1 / 4, 1 / 8, 1 / 16, 1 / 32, 1/64]
Flash Sync Mode Leading-shutter-curtain sync,
trailing-shutter-curtain sync,
contrast-control-sync,
high-speed-sync,
modeling flash
Wireless Flash Control system: Optical pulse transmission
Wireless position: Master (M), control (C), slave (S)
Channels: 1 through 4
Compatible modes: P-TTL, auto (A), manual (M)
Effective range: Approx. 13ft (according to Pentax testing conditions)
Power Saving Automatic power-off: After approx. 3 min. of non-operation with the power in theON position, 6 min. in Auto, 1 hour in wireless mode
Red-Eye Reduction Operates with autofocus cameras equipped with red-eye reduction feature
Modeling Flash Modeling button fires flash consecutively for 1 second
Wide Angle Panel Pull out manually, flash zoom position automatically sets to 20mm
Catchlight Panel Pull out manually
LCD Panel Illumination Light button illuminates the LCD panel for about 10 seconds, or press button again to turn off
Power Source Size-AA batteries x 4, Alkaline LR6, Nickel Hydroxide (Ni-MH), or Lithium FR6
Dimensions 3.0"x5.6"x4.2"
Weight without batteries 13.4 oz without batteries
