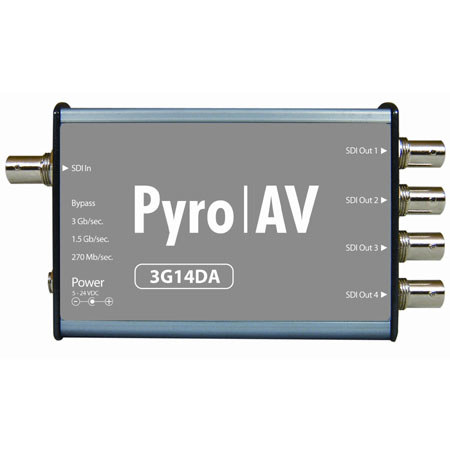

Pyro AV Triple Rate 4 Port Distribution Amplifier

The 3G1DA provides cable equalization to restore SDI signals over 70 O coax cable supporting data rates from 143 MB/sec. to 2.97 Gb/sec. The 3G14DA is designed to recover the embedded clock, re-time the clock signal and removes high frequency jitter from SMPTE 424M, 292M and 259M-c compliant digital video signals. The signal is then output through high quality cable drivers for each output port to ensure SMPTE compliant SDI video output up to 2.97 Gb/sec.

Future proof your video infrastructure. 3 Gb/sec. supports video resolutions up to 1920 x 1080p 60 over a single coax cable. Triple rate devices are backward compatible to SD and HD-SDI. You may not be running 3 Gb/sec. today, but you probably will in the future. Your investment today ensures compatibility for tomorrow.

The 3G14DA is a Triple rate distribution amplifier with buffered and re-clocked outputs on 4 BNC connectors in a mini block size enclosure. Split your SDI video stream into 4 separate re-clocked video outputs. The 3G14DA automatically detects the signal speed of the incoming video signal and distributes pristine video quality over the 4 output ports with no dip switches or user settings necessary. Individual signal present LED's display the locked SDI rate (143 MB, 270 MB, 1.5 Gb/sec and 3 Gb/sec.
