Pyle PLTM20 2 in 1 LAN Tester and Multimeter
Pyle

Pyle PLTM20 2" 1 LAN Tester and Multimeter with Voltage, Current, Resistance, Continuity and Diode Tester

SKU: PYLPLTM20 MFR: PLTM20
Please note: This item is currently back-ordered by the manufacturer. Although we have no estimated time of arrival for this item, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
What's Included
What's Included With This Item:
  • PyleHome PLTM20 2 in 1 LAN Tester and Multimeter
  • Test Leads
  • LANtest Remote Terminator
  • 9V Battery
  • Carrying Case
  • PyleHome 1 Year Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$49.30
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

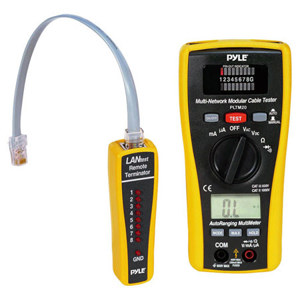

The Pyle PLTM20 is a 2-in-1 LAN tester and multimeter. It tests pin configurations for 10 base-T, 10 base-2, RJ45/RJ11, 356A, TIA-596A/568B and token ring cable. You can test cables remotely up to 330 yards away. As a multimeter, the PLTM20 can measure DC/AC voltage, DC/AC current and resistance. It can also check continuity and diodes.

What's Included With This Item

  • PyleHome PLTM20 2 in 1 LAN Tester and Multimeter
  • Test Leads
  • LANtest Remote Terminator
  • 9V Battery
  • Carrying Case
  • PyleHome 1 Year Warranty

Key Features

  • Tests Pin Configuration for 10 Base-T, 10 Base-2, RJ45/RJ11, 356A, TIA-569A/568B and Token Ring Cable
  • Remotely Test Cables Up to 330 Yards Away
  • Test Ground Wire
  • Measure DC/AC Voltage, DC/AC Current, Resistance, Continuity and Diode

Technical Specs

DC Voltage Max Range 600 V, Accuracy +/- 0.5%
AC Voltage Max Range 600 V, Accuracy +/- 1.2%
DC Current Max Range 200 mA, Accuracy +/- 1.2%
AC Current Max Range 200 mA, Accuracy +/- 2.0%
Resistance Max Range 20 MOhms, Accuracy +/- 0.8%
Continuity Test Beeps If Less Than 100 Ohms
Dimensions (H x W x D) 6.38 x 2.93 x 1.73" (16.2 x 7.44 x 4.39 cm)
Weight 10.86 oz (307.87 g)
