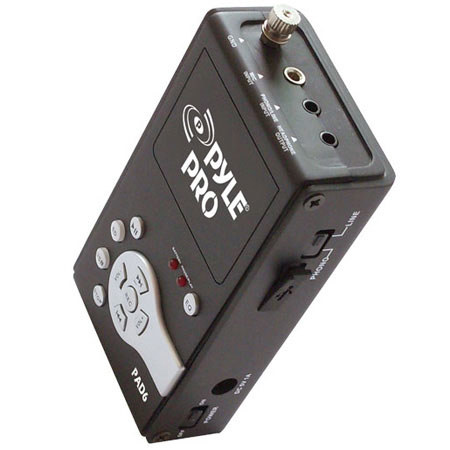

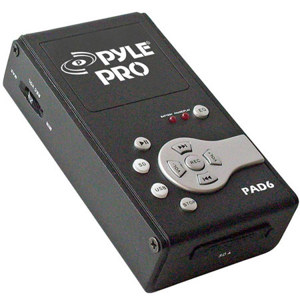

The Pyle PAD6 USB Audio Interface & Recorder & SD Card is a device that converts analog audio signals into digital information. It connects to a Mac or Windows computer via USB and allows you to plug in analog devices such as vinyl turntables and tape decks and record their signal into a computer. You can also record directly to the PAD6 by inserting an SD Card. It's a handy way to digitally capture vinyl and other audio signals without the need for a computer.
The operation of the PAD6 is simple. You connect either a record player or any line-level source to its mini-plug input. A dial on the side of the unit allows you to set the ideal gain level for recording. The USB output connects to your computer, so you can record the digitized audio signal with recording software. You also have the option to record directly onto an SD Card.
You can connect the stereo mini-plug output of the PAD6 to a mixer, stereo receiver, or PA system, so you can monitor your sound. There are volume buttons on the top of the unit to adjust the output level. There are also navigation controls for playing back files from your SD Card. An EQ button will apply preset EQ curves that are appropriate for different music styles.
|Inputs||1 x 3.5mm Mic Input
1 x Stereo 3.5 mm Mini-Plug Input with Grounding Terminal (switches between line-level and phono level)
|Outputs||1 x Stereo 3.5 mm Mini-Plug (switches between line-level and headphone level)|
|Equalization||EQ Button (applies a preset curve for Jazz, Pop, etc.)|
|Memory Card Slot||SD Card|
|Compatibility||Mac and Windows Compatible|
|Power||2 AA Batteries
Bus Power (when connected to USB port)
|Dimensions (W x D x H)||6.2" x 1.2" x 5.2" / 157.48 x 30.48 x 132.08 mm|
