Pyle PCM20A 40 W Power Amplifier with 25 & 70 V Output

SKU: PYPCM20A MFR: PCM20A
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the Pyle PCM20A

The Pyle PCM20A 40 W power amplifier provides the juice you need for your 25 V or 70 V PA speaker. The three 1/4" jack inputs are conveniently located on the front - two mic inputs and one auxiliary input. Mic-1 has an auto talkover, so you can easily cancel the other inputs. Each input has an independent gain control and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. Includes a replaceable fuse and detachable AC power input. It runs on 110 or 220 V.

Pyle PCM20A Features

  • Power On/Off Switch & LED Indicator
  • MIC 1 Output Level Control
  • MIC 2 Output Level Control
  • AUX Output Level Control
  • Bass and Treble Tone Controls
  • MIC 1 Front Located 1/4" Input Jack
  • MIC 2 Front Located 1/4" Input Jack
  • AUX Front Located 1/4" Input Jack
  • MIC 1 Auto Talkover

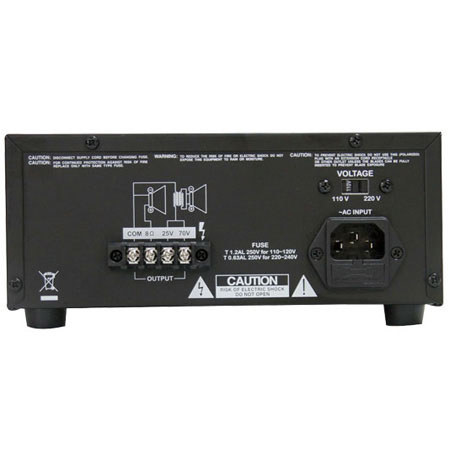

  • Speaker Terminals (COM/8-ohm/25 V/70 V)
  • Replaceable Fuse
  • 110/220 Voltage Selector
  • Detachable AC Power Input

Pyle PCM20A Specifications

Voltage Selector 110/220 V
Speaker Terminals COM/8-Ohm/25V/70V
Dimensions (W x H x D) 7.87 x 3.15 x 5.9" / 19.9 x 8.00 x 14.9 cm
