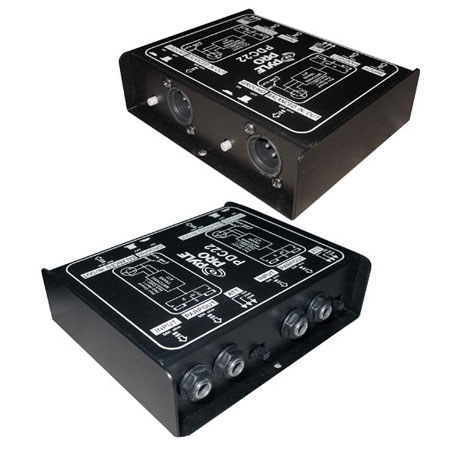

Pyle PDC22 Dual 1/4" Instrument to Balanced & Unbalanced (1/4"/XLR) Direct Box, 5 Hz - 35 kHz (-3 dB) Frequency Response

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$19.00 List Price

Our Price

Free Shipping
Add to Wishlist In Stock

About the Pyle PDC22

The Pyle PDC22 Direct Box is a necessity if you are looking for the highest quality of sound, with low distortion, noise and eliminate ground loops. A DI unit, DI box, Direct Box, Direct Input, Direct Injection or simply DI is an electronic device that connects a high impedance, line level, unbalanced output signal to a low impedance mic level balanced input, usually via XLR connector. DIs are frequently used to connect an electric guitar or electric bass to a mixing console's microphone input.

The DI performs level matching, balancing and either active buffering or passive impedance bridging to minimize noise, distortion and ground loops. DIs do not perform impedance matching. Pyle has been in business for over 35 years and their manufacturing experience and expertise is easy to see - and hear.

Summary of Customer Reviews

Customers most agreed on the following attributes:
Reviewer Profile:
Experienced (1)

Pyle PDC22 Features

  • Two high-quality direct boxes in one convenient enclosure
  • Easy interfacing and connection between various audio gear in numerous applications
  • Input attenuation: Switchable (0 dB, -20 dB, -40 dB)
  • Instrument input: 50 K unbalanced 1/4" TS jack
  • Parallel (Link) out: 50 K unbalanced 1/4" TS jack
  • Balanced Output: 600 Balanced XLR Jack
  • Ground Lift: Switchable ground lift
  • Construction: All steel chassis

Pyle PDC22 Specifications

Input Connections 2x Instrument: 1/4" Phone Jack, Unbalanced
2x Parallel Link Out: 1/4" Phone Jack, Unbalanced
Output Connectors 2x Balanced Output: XLR Connector
Input Level +8.1dBu (9V Battery)
+11.3dBu (48V Phantom)
Frequency Response 5Hz - 35kHz (-3dB)
Noise -104dBu
Power No
Dimensions (W x D x H) 5.51 x 4.72 x 1.57" (13.99 x 11.98 x 3.98cm)
