Quantum Scientific Imaging

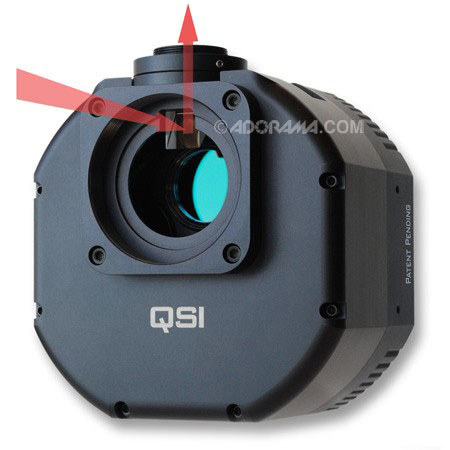

QSI 504wsg Monochrome Cooled Full Frame CCD Camera with 0.4MP KAF-0402ME Image Sensor with Microlens Technology, Shutter, CFW and Guider Port

SKU: QSI504WSG MFR: 504WSG
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$3,690.00
Free Shipping
Qty:

Add to Wishlist

About this item

The standard 504wsg model camera employs a 400,000 pixel Kodak Enhanced Response full-frame CCD image sensor with microlens technology. The high quantum efficiency, wide dynamic range and low noise performance make the 504wsg ideally suited to a broad range of demanding astronomical, scientific and industrial imaging applications.

The KAF-0402ME sensor has a photoactive array of 768W x 512H pixels. It has excellent quantum efficiency between 350nm and 1000nm with significant enhancement at the blue end of the spectrum. Low dark current and high pixel charge capacity result in a dynamic range exceeding 76db.

The sensor employs a true two-phase charge transfer technology with a transparent gate that significantly increases optical response compared to traditional front illuminated full frame sensors. Micro lenses cover the surface of the CCD and focus the light through the transparent gate to further increase optical response.

What's Included With This Item

  • QSI 504wsg Monochrome Cooled Full Frame CCD Camera
  • Integrated Guider Port
  • Internal 5-position Color Filter Wheel
  • T-Mount Adapter and Threaded Cap
  • T-Mount to 2" Nosepiece
  • 12VDC / 90-240VAC Power Supply
  • 10' USB 2.0 Interface Cable
  • 10' Standard Guider Cable
  • QSI Software Installation CDROM
  • Drivers for MaxIm DL/CCD and CCDSoft
  • ActiveX Developer's Toolkit
  • Linux Developer's Toolkit
  • Custom Fit Pelican Storage Case
  • QSI Warranty

Key Features

  • Full-frame 400,000 pixel KAF-0402 sensor
  • Low noise, wide dynamic range
  • Up to 45 deg. C CCD cooling
  • Built-in mechanical shutter
  • Available internal 5-position color filter wheel
  • Available MaxIm LE camera control and image processing software
  • Available CCDSoft and MaxIm DL Drivers
  • ASCOM-compatible Windows COM API
  • Linux drivers and API

Technical Specs

CCD Manufacturer & Model Kodak KAF-0402ME
CCD Architecture Full Frame
Blue Enhanced Yes
Microlens Yes
Anti-blooming No
Imager Size (W x H) 6.91mm x 4.6mm
Pixel Array (W x H) 784x520 total pixels,
768x512 active (visible)
Pixel Size 9µm x 9µm
Pixel Full Well Depth 100,000 electrons
Absolute Quantum Efficiency Peak: 83%
400nm: 44%
Pixel Dark Current < 1.0 electron per second at 0deg.C
< 0.1 electron per second at -25deg.C
Dark Current Doubling 6.3deg. C
Intrinsic Read Noise 15 electrons RMS
Dynamic Range 76db
Charge Transfer Efficiency > 0.99999
Interface Cable 10'
Standard Guider Cable 10'
Color Filter Wheel 5-Position
Power Supply 12VDC / 90-240VAC
