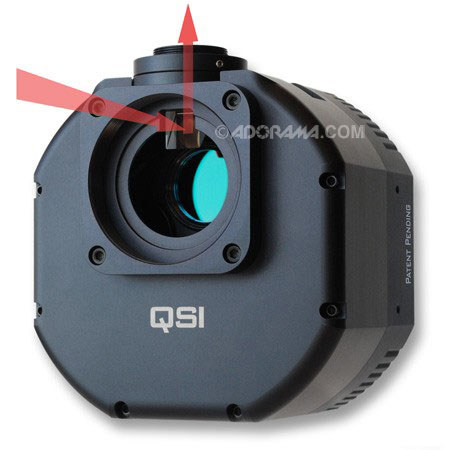

Quantum Scientific Imaging QSI 516wsg Monochrome Cooled Full Frame CCD Camera, 1.6MP KAF-1603M Image Sensor with Microlens Technology, Shutter, CFW and Guider Port

The standard QSI 516wsg model camera employs a 1.6 megapixel Kodak Enhanced Response full-frame CCD image sensor with microlens technology. The high quantum efficiency, wide dynamic range and low noise performance make the 516wsg ideally suited to a broad range of demanding astronomical, scientific and industrial imaging applications.

The KAF-1603ME sensor has a photoactive array of 1536W x 1024H pixels. It has excellent quantum efficiency between 350nm and 1000nm with significant enhancement at the blue end of the spectrum. Low dark current and high pixel charge capacity result in a dynamic range exceeding 76db.

The sensor employs a true two-phase charge transfer technology with a transparent gate that significantly increases optical response compared to traditional front illuminated full frame sensors. Micro lenses cover the surface of the CCD and focus the light through the transparent gate to further increase optical response.
