Quantum Scientific Imaging

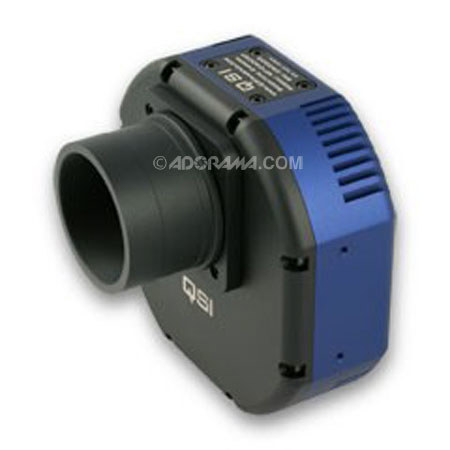

QSI 520ci Cooled Interline RGB Bayer Filter, Single Shot Color CCD Camera, 4.2MP KAI-2020CM Image Sensor with Microlens Technology, Electronic Shutter

SKU: QSI520CI MFR: 520CI
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$3,495.00
Free Shipping
Qty:

Add to Wishlist

About this item

The standard 520ci model camera employs a 2 megapixel Kodak interline transfer CCD image sensor with microlens technology. Integral Bayer RGB color filer mask allows Single-Shot color imaging. The high quantum efficiency, wide dynamic range and low noise performance make the 520ci ideally suited to a broad range of demanding astronomical, scientific and industrial imaging applications.

The 500ci sets a new benchmark for compact design and power efficiency in a high performance, full-featured scientific CCD camera. With optional features and upgradeability, the 520ci can be tailored to fit your needs today and in the future. The 520ci camera system is supported by industry leading image acquisition software and development tools are available for creating custom Windows or Linux imaging applications.

What's Included With This Item

  • QSI 520ci Cooled Interline Single Shot Color CCD Camera
  • T-Mount Camera Adapter
  • T-Mount Adapter Cover
  • T-Mount to 2" Nosepiece
  • 12VDC / 90-240VAC Power Supply
  • 10' USB 2.0 Interface Cable
  • 10' Standard Guider Cable
  • QSI Software Installation CDROM
  • Drivers for MaxIm DL/CCD and CCDSoft
  • ActiveX Developer's Toolkit
  • Custom Fit Pelican Storage Case
  • QSI Warranty

Key Features

  • Interline 2 megapixel KAI-2020CM sensor
  • Single-Shot color imaging
  • Low noise, wide dynamic range
  • Very fast electronic shutter
  • Up to 45 deg. C CCD cooling
  • ASCOM-compatible Windows API
  • Linux drivers and API

Technical Specs

CCD Image Sensor KAI-2020CM
Electronic Shutter 100microsecond to 240 minutes
Mechanical Shutter No
Internal Color Filter Wheel No
Filters None
Camera Body Configuration Slim Enclosure
Optical Back Focus 0.58" w/T-mount adapter
0.68" w/C-mount adapter
0.35" w/o mounting adapter
Thermoelectric CCD Cooling Temperature regulation +/- 0.1deg.C, at 0deg.C to -40deg.C CCD temperature
In free air, Fans at Full Speed Typically 38deg.C below ambient air with 85% cooling power
With Opt Liquid Cooling - Fans Off Typically 45deg.C below circulating liquid with 85% cooling power (adds 0.75" to camera depth)
Cooling Fan Control Intelligent, user configurable
Camera Gain User Selectable 0.8 e-/ADU, 1.9 e-/ADU
Digital Resolution 16 bits
Total System Read Noise Typically < 8 electrons RMS (CCD specification limited)
Pixel Dark Current < 0.1 electron per second at 0deg.C
Full Image Read and Download Time Typically < 5 second (host computer dependent)
Binning Modes Symmetrical on-chip 2 x 2 and 3 x 3, user selectable
Status and Notification User configurable multi-color LED status indicator and multifunction audible beeper. Over-temperature and high/low voltage alarms.
Operating Environment Temperature: -20deg.C to 30deg.C, Humidity: 10% to 90% non-condensing
Computer Connectivity USB 2.0 (USB 1.1 compatible)
Other Ports Optically isolated 4 channel control port for telescope guiding or other application specific control
T Mounting Adapter Standard adapter - T-Thread, 42mm x .75mm
C Mounting Adapter (1" x 32TPI) Optional, C-Mount lens focus
compatible (17.5mm backfocus)
Nosepiece Standard, T-Adapter to 2" nosepiece
Optional, T-Adapter to 1.25" nosepiece
Power Consumption 12v, 1.5A (18 watts) at max cooling, max fans and filter moving
(25 AC watts max with included 90-240V AC power supply)
Dimensions (W x H x D) 4.45 x 4.45 x 1.68in / 11.30 x 11.30 x 4.27cm
(add 0.23" for T-Mount)
Weight, without Nosepiece 26 oz. / 740g
