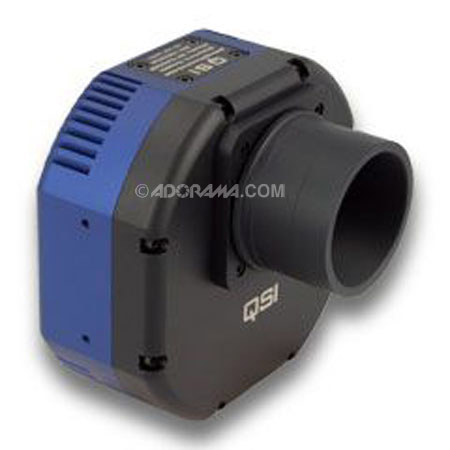

Quantum Scientific Imaging QSI 540s Monochrome Cooled Interline CCD Camera with 4.2MP KAI-04022 Image Sensor with Microlens Technology, Mechanical Shutter

The QSI 540 model camera employs a 4.2mp Kodak interline transfer CCD image sensor with microlens technology. The increased Field of View, high quantum efficiency, wide dynamic range and low noise performance make the 540i ideally suited to a broad range of demanding astronomical, scientific, medical and industrial imaging applications. Because the internal color filter wheel is positioned very close to the focal plane in QSI 500 Series cameras, the 21.4mm diagonal Kodak KAI-04022 sensor experiences no optical vignetting through standard 1 ¼-inch filters, even with fast optical systems.

The compact design of the QSI 500 Series allows the 540 to set a new benchmark for cost and size in a high performance, full-featured scientific CCD camera. With optional features and upgradeability, the QSI 540 can be tailored to fit your needs today and in the future. The 540 camera system is supported by industry leading image acquisition software and development tools are available for creating custom Windows or Linux imaging applications.
