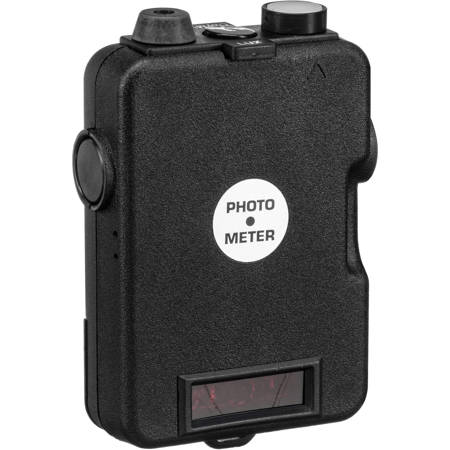

Quantum Photo-Meter LX Digital Lux Meter
What's Included With This Item:
- Quantum Photo-Meter LX Digital Lux Meter
- Quantum 1 Year Limited Warranty
The Quantum Photo-Meter LX Digital Lux Meter measures illumination for architects, designers, scientists and industrial engineers. For 2 decades the Quantum PhotoMeter has served industrial, scientific and laboratory needs for precision light readings. PhotoMeter's small size and robust design assure readiness for the varied light measurements it can take. PhotoMeters also measure vehicle headlamps on assembly lines, survey stage lighting, or measure any light source or reflecting surface. PhotoMeters are simple to operate. Press the Measure button to get continuously updated readings. Releasing the Measure button freezes the last reading for convenient reference. The Range button adjusts the measurement display for the resolution desired. The LED display is visible in very dim light, as well as direct sunlight. LED displays are inherently robust in comparison to LCD (liquid crystal) displays. Commonly available batteries power PhotoMeters for tens of thousands of readings.
Economical Survey Photometers E and L PhotoMeter are built in an "E" version for English units of foot-candles and an "L" version for metric units of lux. These two models are suitable for most survey measurements and comparative or repetitive light readings. Both E and L models have an approximate match to the C.I.E. (standard eye) color response. Measurements of luminance are possible with the optional Luminance Receptor PM13. PhotoMeter E will read out foot-Lamberts and model L in nits (candela/m2).
Extra Precise Laboratory Photometers EX and LX
PhotoMeters "EX" and "LX" are precision meters required for scientific and laboratory work. These models utilize filtered sensors with spectral response tightly calibrated to the C.I.E. Photopic response. The illuminance receptors closely follow the Cosine Law: Relative Sensitivity versus Angle of Illuminance. These "X" versions can be adapted and calibrated to the Flexible (12") Fiber Optic Probe PM-12, Rotating Illuminance Receptor PM-11, or Rigid (1") Fiber Optic Probe PM-10.
|Accuracy Electrical||1% plus two digits|
|Accuracy Spectral||7% at 2800deg.K|
|Sensor||Silicon with infrared filter|
|Batteries||Available camera button cells: A76, MS76, 10L14, 357 or equivalent|
|Dimensions||4.0 x 2.8 x 1.2" / 101.6 x 71.12 x 30.48mm|
|Weight||4oz / 113.39g|
