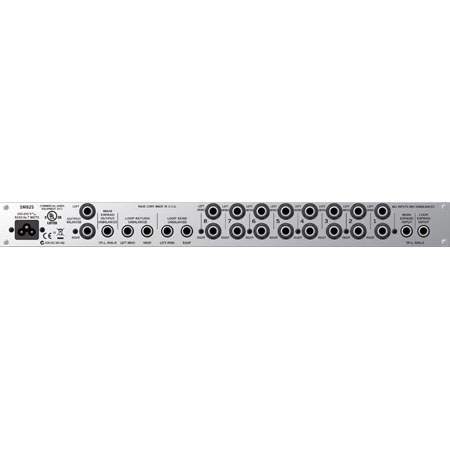

Rane SM82S 8 Stereo Input Channel Mixer, 20 Hz-20 kHz Frequency Response, 100k ohm Input Impedance, 100 to 240VAC Power Supply

Rane
Rane SM82S: Picture 1 thumbnail Rane SM82S: Picture 2 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95
21% Off

Our Price

$499.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Rane SM82S

The Rane SM82S is a product offering incredible power and versatility. It is the equivalent of a sixteen channel mixer in one rack space. It measures only 5.25" deep, it can do the job of mixers costing several times as much while only occupying a fraction of the rack space. It is ideally suited for keyboards, synthesizer expander modules and drum machines, as well as such things as effects mixing in guitar racks. It also functions as an excellent submixer for stereo line inputs and effects to a larger console. Because of shorter internal signal paths, it is much cleaner than many mixers ten times the cost and size.

Each of the eight Stereo (two channel) input channels feature a stereo rotary input Level control, a stereo aux Send level control slider and a left to right Balance control slider. When a single mono input is used, the Balance control acts as a pan pot. The aux return section provides a rotary Return Level control and a slide control for left to right Balance. The output stage includes a rotary Output Level control and a slide control for left to right Balance.

The human engineering applied to the SM82S makes it extremely easy to operate. The segregation of function between rotary and slide controls (rotary for all input and output Levels and slide for Balance and Send) makes it simple to use, even in the dark.

The SM82S is expandable using the 1/4" TRS Main Expand Input and Output jacks. Expansion is as simple as connecting a stereo 1/4" jumper cable from the first unit's Expand Output jack to the second unit's Expand Input jack. One of the most unusual features of the SM82S is its inherent immunity from noise. All eight of the stereo inputs may be turned all the way up without increasing the internal noise of the mixer. This is critical due to the wide variation in output levels found in musical instruments and tape devices. A fairly low-level guitar may be combined in the same system with a high level synthesizer without any undesirable side-effects. The SM82S eliminates the concerns normally associated with mixing so-called -l0 dBV units with +4 dBu types.

Rane SM82S Features

  • 8 Stereo Input Channels
  • 1 Stereo Auxiliary Send
  • 1 Stereo Auxiliary Return
  • Stereo Balance / Mono Pan Controls
  • Balanced Stereo Output
  • Expandable to / from other Mixers
  • Internal Universal Voltage Power Supply (100-240 VAC)

Rane SM82S Specifications

Input Impedance: Channels 1-8
100k ohm
Input Impedance: Receive
100k ohm
Input Impedance: Expand
20k ohm
Input Level: Nominal
+4dBu
Input Level: Minimum
-10dBV
Input Level: Maximum
+26dBu
Input Design
Unbalanced
Input Connectors: Channels 1-8
1/4" mono TS (tip-sleeve)
Input Connectors: Receive
1/4" mono TS
Input Connectors: Expand
1/4" stereo TRS (tip-ring-sleeve)
Input Gain Range
Off to +6 dB
RFI Input Filters
Yes
Max Output Level: Main
+26 (+20)dBu
Max Output Level: Loop Send
+20 dBu
Max Output Level: Expand
+20 dBu
Output Impedance: Main
100ohm
Output Impedance: Loop Send
100ohm
Output Impedance: Expand
100ohm
Output Design: Main
Active Balanced/Unbalanced
Output Design: Loop Send
Unbalanced
Output Design: Expand
Unbalanced
Frequency Response
20 Hz-20 kHz dB
Output Connectors
1/4" TRS
Output Gain Range
Off to +6dB
THD+Noise
.015%
IM Distortion (SMPTE)
.01%
Input Referred Noise
-112dBu
Signal-to-Noise Ratio
98 (re +4 dBu, 20 kHz BW) dB
Crosstalk: Left to Right
76 (1 kHz) dB
Crosstalk: Channel to Channel
85 (1 kHz) dB
Overload LED Thresholds
+16 dBu
Power Supply Requirement
100 to 240VAC
Construction
Steel
Dimensions (H x W x D)
1.75 x 19 x 5.3" / 4.45 x 48.26 x 13.46cm
Weight
5 lbs / 2.26 kg
