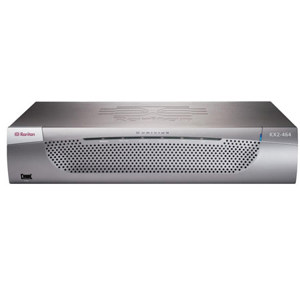

Raritan Dominion 64-Port KVM Switch
Raritan

Raritan Dominion 64-Port KVM Switch, 2 Local Users/8 IP Users

SKU: RARDKX2864 MFR: DKX2-864
What's Included
What's Included With This Item:
  • Raritan Dominion 64-Ports Digital KVM Over IP Switch
  • Rack Mounting Kit
  • Raritan 2 Years Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$10,250.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Raritan Dominion DKX2-864 is a 64 Port KVM Over IP Switch which provides eight remote users and two local user BIOS-level access and control of up to 64 servers. In addition to the standard local port, Dominion KX II-864 features a new extended local port that extends the local port, via Cat5 cable, beyond the rack to a control room, another point in the data center or to a Paragon II switch. Dominion KX II-864 works standalone or with CommandCenter Secure Gateway centralized management appliance.

What's Included With This Item

  • Raritan Dominion 64-Ports Digital KVM Over IP Switch
  • Rack Mounting Kit
  • Raritan 2 Years Warranty

Key Features

  • CIMs connect to the server's KVM ports and can be located up to 150 feet away from the switch using UTP (Cat5/5e/6) cabling. CIMs also provide keep-alive keyboard/mouse emulation
  • Access from Windows, Linux, Sun or Mac desktops via a wide range of Web browsers or standalone client
  • Raritan's remote client software is automatically downloaded via Web browser; standalone multi-platform client available for emergency modem access
  • Provides its entire feature set out of the box: Virtual Media, 128 or 256
  • bit AES or RC4 encryption, dual power supplies and dual gigabit Ethernet ports with failover, SNMP, Syslog, as well as integration with LDAP, Radius and Active Directory authentication. Support of IBM, HP & Dell blade servers

Technical Specs

Ports Qty 64
Remote Management Protocol SNMP, HTTP, HTTPS
Connectivity Technology Wired
KVM Local Users Qty 2 local user
KVM IP Users Qty 8 IP users
Server Connection Via Twisted Pair CAT5
Max Resolution 1600 x 1200
Interfaces 64 x keyboard / video / mouse (KVM), RJ-45 female
Connections 6 pin mini-DIN (PS/2 style) female, 1, 1 x keyboard, generic, 6 pin mini-DIN (PS/2 style) female, 1, 4 x US
Encryption Algorithm RC4, AES, SSL
Authentication Method RADIUS, PAP, CHAP, LDAP, Active Directory
Enclosure Type External, 2U
Power Device Power supply - internal
Installed Qty 2 (installed) / 2 (max)
Voltage Required AC 120/230 V ( 50/60 Hz )
Min Operating Temperature 32 Deg.F
Max Operating Temperature 104 Deg.F
Humidity Range Operating 20 - 85%
Dimensions (W x D x H) 17.3 x 14.2 x 3.5 in (43.9 x 36 x 8.8 cm)
Weight 12.8 lbs (5.8 kg.)
