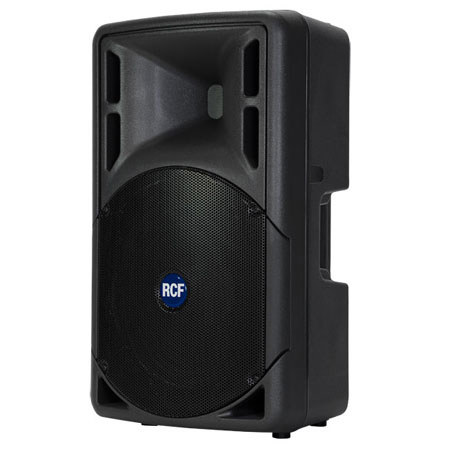

The RCF ART 315-A 15" Active Two-Way Speaker comes with a lot of power in a very small package. The lightweight, polypropylene enclosure is packed with high quality neodymium transducers, a 350 W amplifier, a complete electronic processor and RCF low distortion. This speaker is known for its unique clarity and low distortion.
The 15" woofer features experience driven refinements in compact two-way speakers resulting in fast and accurate reproduction of midbass frequency and controlled deep bass. The compression driver uses a new 1.5" titanium dome design and an optimized geometry radial phase plug.
A generous 2 step class H design powers the low frequencies and the compression driver amplifier provides a warm and clear class AB design. The system processor controls crossover, equalization, transducers, phase alignment, limiter and protection functions. You can visually monitor your functions with the handy four status LEDs.
|Frequency Response -3 dB||50 Hz - 20 kHz|
|Max SPL||128 dB|
|Horizontal coverage angle||90deg.|
|Vertical coverage angle||60deg.|
|Compression Driver||1" neo, 1.5" v.c.|
|Woofer||15", 2.5" v.c.|
|Input signal||Bal / Unbal|
|Input sensitivity||0 dBu|
|Mic. Input Sensitivity||-40|
|Crossover frequencies||1800 Hz|
|Protections||DC / short cir.|
|Total power||350 W|
|High frequencies||50 W|
|Low frequencies||300 W|
|Connections||VDE connector in|
|Cabinet Material||Composite PP|
|Hardware||4xM10 flying p.|
|Handles||2 side, 1 top|
|Dimensions (H x W x D)||680 x 405 x 345 mm (26.77 x 15.94 x 13.58")|
|Weight||20 kg (44.09 lbs)|
