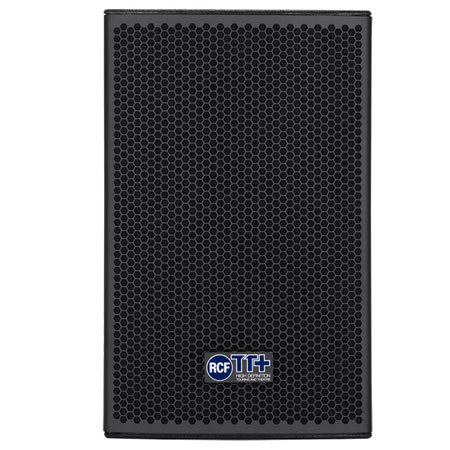

RCF TT08-A Active Precision Monitor, 65 Hz - 20 kHz Frequency Response, 128 dB Max SPL

RCF
SKU: RCFTT08A MFR: TT08-A
RCF TT08-A: Picture 1 thumbnail RCF TT08-A: Picture 2 thumbnail RCF TT08-A: Picture 3 thumbnail RCF TT08-A: Picture 4 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $69.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $94.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $249.95
24% Off

Our Price

$1,999.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About RCF TT08-A

The RCF TT08-A is an active precision monitor. Though remarkably compact and lightweight, the TT08-A offers an incredible maximum sound pressure level of 128 dB. Its performance efficiency is almost 3 dB higher than many larger 10" speaker systems and indeed comparable to many 12" systems.

RCF TT08-A Features

  • 750 W power switching amplifiers
  • Wide, constant directivity, coverage angle
  • High power 64 mm coil neodymium woofer
  • 44 mm coil titanium compression driver
  • High quality analog input board
  • Soft limiter and RMS protection
  • Maximum output per size available on the market

RCF TT08-A Specifications

Frequency Response -3 dB
65 Hz - 20 kHz
Max SPL
128 dB
Horizontal coverage angle
90deg.
Vertical coverage angle
60deg.
Compression Driver
1.0 " neo, 44 mm voice coil
Woofer
8" neo, 64 mm voice coil
Input signal
Bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
-2 dBu / + 4 dBu
Crossover frequencies
1700 Hz
Protections
Thermal, HF
Limiter
RMS, fast limiter
Controls
Side/ floor coupling
Total power
750 W
High frequencies
D/250 W
Low frequencies
D/500 W
Cooling
Convection
Connections
Powercon in/out
Cabinet Material
Baltic birch
Hardware
2 x fly tracks
Pole Mount/Cap
Yes
Dimensions (H x W x D)
430 x 270 x 303 mm / 16.9 x 10.6 x 11.9"
Weight
11.4 kg / 25.1 lbs
