RCF

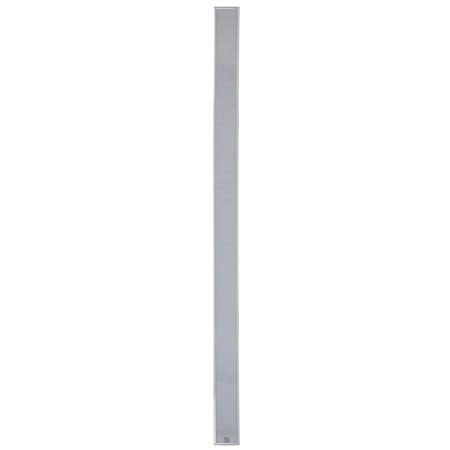

RCF VSA 2050 Digitally Steerable Sound Column Speaker, 100-18.000 Hz Frequency Response, 96 dB Max SPL

SKU: RCFVSA2050 MFR: VSA 2050
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$6,629.00 List Price

Our Price

$5,599.00 $218 per week
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About the RCF VSA 2050

The RCF VSA 2050 is a multi-amplified vertical steerable array that represents one of the latest RCF applications in terms of digital audio technology. Thanks to powerful DSP, it processes the audio signal sent to each speaker for controlling its vertical acoustic dispersion to address the audio signal exactly to the listening area, avoiding sending the acoustic energy to ceilings and empty floors, thus not introducing bad reflections that would affect speech intelligibility, mainly in critical environments with high reverberation time.

RCF VSA 2050 Includes

  • RCF VSA 2050 Digitally Steerable Sound Column Speaker
  • Standard Installation Accessories
  • RCF Warranty

RCF VSA 2050 Features

  • 20 x Class D, 50 W amplifiers
  • 96 dB Max SPL
  • 20 x 3.5" full range speakers
  • 48 kHz 32 bit processing
  • Horizontal dispersion 130deg
  • Vertical dispersion controlled up to 10deg. till 300 Hz
  • Power supply 115/230 V AC (600VA); 24 V DC
  • Extruded aluminum body
  • Ceramic block terminals and thermal fuse on 0 dB balanced priority input
  • Simple and quick set up
  • Indicators and control for EN 60849 monitoring facility

RCF VSA 2050 Specifications

Frequency Response 100 - 18.000 Hz
Max SPL 96 dB (A-weighted at 30 m)
Horizontal coverage angle 130 deg.
Vertical coverage angle Selectable from 10deg. to 30deg.
Vertical steering angle Selectable from 0deg. to -40deg.
Directivity control frequency From 150 Hz
Transducers 20 x 3.5" full-range speakers
Input sensitivity 0 dBu, digitally controlled
Input connectors Balanced screw terminal, balanced screw terminal ceramic block
Input control Remote control dedicated IR input, priority input command, status remote monitoring, stand by remote command
Input LEDS Active, communication, status, emergency
Processor Texas Instruments TMS320C6726 32 bit floating point DSP Xilinx Spartan3A FPGA, BurrBrown A/D PCM 4202 24 bit 48 kHz 118 dB S/N ratio
Processor operations 20 channel PEQS, compression, beam-forming, speaker limiter and protection
Amplifiers 20 x Class D, 50 W
Amplifiers protections Short circuit, thermal
Power supply 500 W switching type
Cabinet Powder coated aluminium extrusion
Hardware 2 x speaker wall mounting flange
Configuration tool Remote control
Power supply & connectors 115/230 Vac-VDE connector, 24 V DC back-up ceramic terminal block
Dimensions (H x W x D) 2070 x 125 x 97 mm / 81.4 x 4.92 x 3.81"
Weight 19 kg / 41.8 lbs
